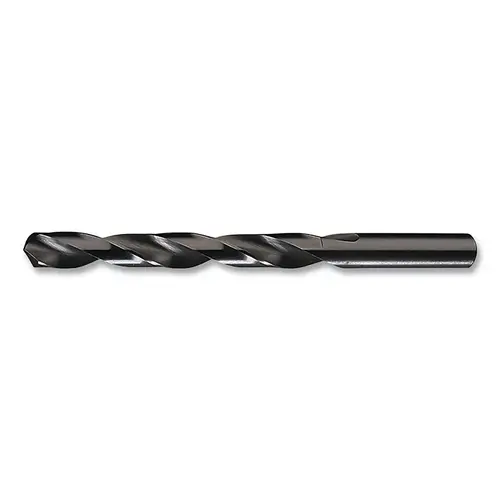

150 General Purpose Black Oxide Jobber-Length Drill Bit, 0.4528 in dia Cutting, 5.5905 in OAL, 11.50 mm - pack of 6

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Chicago-Latrobe 47346 150 General Purpose Black Oxide Jobber-Length Drill Bit, 0.4528 in dia Cutting, 5.5905 in OAL, 11.50 mm - pack of 6

Item #: 47346 by Chicago-Latrobe

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$90.63

/package
SAVE UP TO 9.06
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 5 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Steam oxide

Material

High-Speed Steel (HSS)

Bit Length

5.5905 in

Type

Style 150

Shank Type

Straight

Flute Length

3.7008 in

Point Angle

118° RHS/RHC

No of Flutes

2

Point Shape

Radial

Nominal Diameter

11.50 mm

Coating

Black Oxide

Cutting Diam [Nom]

0.4528 in

Overall Length [Nom]

5.5905 in

Flute Type

Spiral

Overall Length (mm)

142.00

Number of Flutes

2

Standards

DIN 338

Cutting Direction

Right Hand

Series

150

Point Type

Standard

Drill Bit Material

High Speed Steel

Spiral Type

Regular

Coolant Through

No

Drill Bit Grade

General Purpose

Drill Bit Size (Decimal Inch)

0.4528

Drill Bit Size (mm)

11.50

Drill Bit Size Range (Decimal Inch)

0.4000 - 0.5000

Drill Point Angle

118 degrees

Flute Length (mm)

94.00

Primary Workpiece Material

Cast Iron

Shank Diameter (Decimal Inch)

0.4528

Shank Length (Decimal Inch)

1.8897

Shank Length (mm)

48.00

Tool Performance

General Purpose

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

-0.0010 to 0.0000 in

Drill Bit Finish/Coating

Oxide

Drill Bit Size Range (mm)

10.00 - 12.50

Specification Designation

DIN

Specification Number

DIN 338

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview
Manufactured from premium high-speed steel (HSS)
Black oxide surface finish increases wear resistance and adds lubricity to improve chip flow
118 degree point with straight shank.
