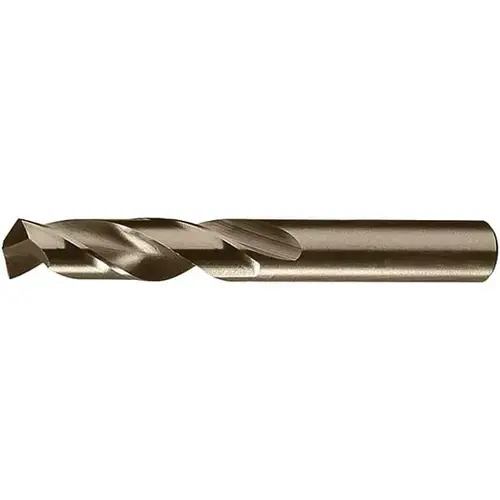

Chicago-Latrobe 49016 Screw Machine Length Drill Bit: 6.70 mm Dia, 135 deg Point, Cobalt Straw
Item #: 49016 by Chicago-Latrobe
UPC #: 662355004456
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Flute Type
Regular Spiral
Shank Type
Straight
Overall Length (mm)
73.99
Number of Flutes
2
Tool Material
Cobalt
Cutting Direction
Right Hand
Series
559
Point Type
Split Point
Spiral Type
Regular
Coating/Finish
Straw
Coolant Through
No
Drill Bit Grade
Heavy Duty
Drill Bit Size (Decimal Inch)
0.2638
Drill Bit Size (mm)
6.70
Drill Bit Size Range (Decimal Inch)
0.2500 to 0.3000
Flute By Diameter Ratio
4xD
Flute Length (Decimal Inch)
1.3390
Flute Length (mm)
34.01
Material Grade
M42
Maximum Drilling Depth (Decimal Inch)
0.9233
Overall Length (Decimal Inch)
2.9130
Primary Workpiece Material
Tool Steel
Shank Diameter (Decimal Inch)
0.2638
Shank Diameter (mm)
6.70
Shank Length (Decimal Inch)
1.5920
Shank Length (mm)
40.44
UNSPSC Code
23241635
Vendor Drop Ship
N
Drill Bit Diameter Tolerance
+0.0000 to -0.0010 in
Drill Bit Size Range (mm)
6.50 - 8.00
Drill Point Angle
135
Proprietary Coating/Finish
Straw
Drill Tip Finish/Coating
Oxide
Specification Designation
DIN
Specification Number
DIN 1897
Finish
Straw
Material
HSS-CO 8% (M42)
Type
Screw Machine Drill
Flute Length
1.339 in
Point Angle
135°
No of Flutes
2
Point Shape
Split
Nominal Diameter
0.2638 in
Overall Length [Nom]
2.913 in
Tip Size Symbol [Nom]
6.7 mm
Product Overview
Screw Machine Length Drill Bit: 6.70 mm Dia, 135 deg Point, Cobalt Oxide Coated, 73.99 mm OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank, Series 559
