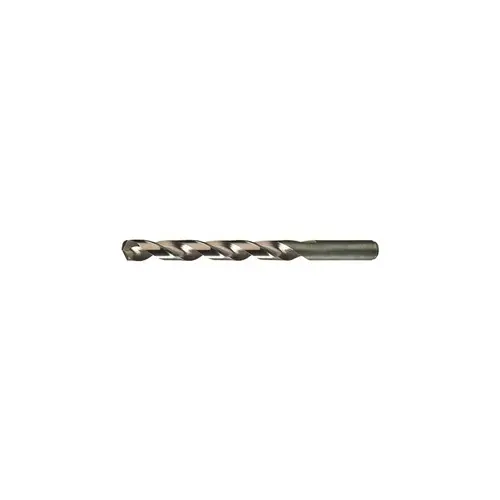

Chicago-Latrobe 50080 Jobber Length Drill Bit: 19/32" Dia, 135 degree, Cobalt
Item #: 50080 by Chicago-Latrobe
UPC #: 662355500804
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Shank Type
Straight-Cylindrical
Shank Diameter (Inch)
19/32
Drill Bit Diameter Tolerance
-0.0012 to 0.0000 in
Vendor Drop Ship
N
Web Thinning
Web-Thinned
Overall Length (Inch)
7-1/8
Drill Bit Material
Cobalt
Specification Designation
NAS
Material Grade
M42
Drill Point Angle
135 degrees
Flute Length (Inch)
5-3/16
Drill Bit Size (Decimal Inch)
0.5938
UNSPSC Code
23241634
Drill Bit Finish/Coating
Gold
Specification Number
NAS 907
Number of Flutes
2
Shank Length (mm)
49.21
Standards
DIN 338
Drill Bit Grade
Heavy Duty
Primary Workpiece Material
Titanium
Flute Type
Spiral
Drill Bit Size (Inch)
19/32
Coolant Through
No
Tool Performance
High Performance
Shank Length (Decimal Inch)
1.9375
Spiral Type
Regular
Drill Bit Size Range (Decimal Inch)
0.5000 - 0.6500
Cutting Direction
Right Hand
Web Configuration
Tapered
Point Type
Split
Series
550
Finish
Straw
Material
HSS-CO 8% (M42)
Bit Length
7.125 in
Type
Style 550
Flute Length
5.1875 in
Point Angle
135° RHS/RHC
No of Flutes
2
Point Shape
Split
Nominal Diameter
19/32 in
Coating
Straw
Cutting Diam [Nom]
0.5938 in
Overall Length [Nom]
7.125 in
Product Overview
Jobber Length Drill Bit: 19/32" Dia, 135 degree, Cobalt Oxide/Gold Coated, 7-1/8" OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 550
