30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 180º Glass-to-Glass
- Rounded Design Ideal for "Soft Decors"
Height
2-3/4" (70 mm)
Width
3-3/4" (95 mm)
Finish
Chrome

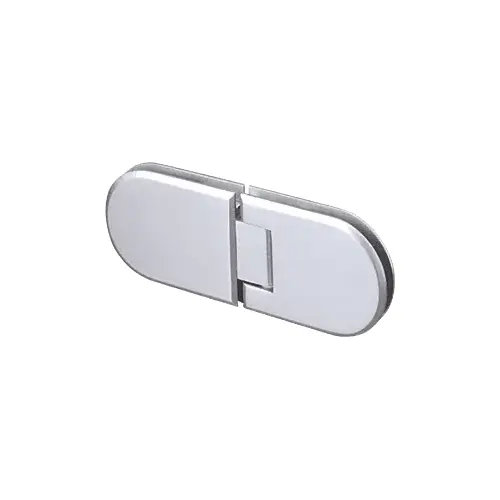

The CRL Berlin Series of hinges combines elegant design with superb quality. This family of hinges features a Wall Mount Hinge with Offset Back Plate, which leaves the mounting plate visible only from inside the shower. Three Glass-to-Glass models round out the selection. Choose from a number of beautiful finishes to accentuate the décor of most bathrooms. Berlin Hinges are constructed of solid brass, and will provide a new inspiration combined with a classic past.
Using two hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 60 lbs. (27 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Rounded design is ideal for "soft" décors.
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Using two hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 60 lbs. (27 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Rounded design is ideal for "soft" décors.
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
