The free swinging CRL Offset Pivot Hinge is perfect for light duty doors, such as partitions and smaller entry doors. Also commonly used for cabinet doors. This Hinge requires only two 5/8" (16 mm) holes in the glass, and is available in popular polished brass and polished chrome finishes. Includes gasket and hole drilling template.
SPECIFICATIONS
Glass Size: 5/16" and 3/8" (8 and 10 mm)
Construction: Solid Brass Casting
Closing Type: Free Swinging
Glass Fabrication: Two 5/8" (16 mm) Holes Required
Includes: Gaskets and Template
The maximum recommended door width using two hinges is 32" (813 mm) and maximum weight should not exceed 96 lbs. (43 kg). The maximum recommended door width using three hinges is 36" (914 mm) and maximum weight should not exceed 140 lbs. (63 kg).
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

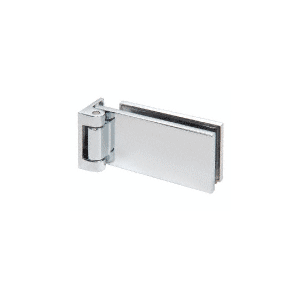

CRL FA044CHClick To Copy Chrome Free Swinging Offset Pivot Hinge
Item #: FA044CH by CR Laurence
See reviewsSee reviews
In Stock
$95.40
/eachSAVE UP TO 9.54
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 331 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For 5/16" to 3/8" (8 to 10 mm) Glass
- Offset Pivot Point Allows Full 180 Degrees Swing
- Two 5/8" (16 mm) Holes Required
Shipping Weight
1 lb (454g)
Finish
Chrome
Weight Capacity
96
Material
Brass

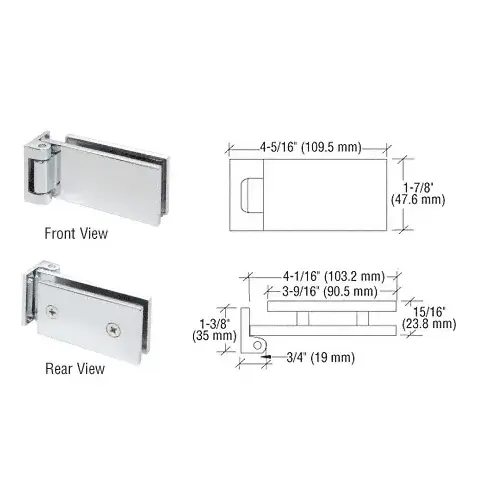

Width
4-5/16
Glazing Thickness
5/16 To 3/8
Maximum Door Width
32
Finish/Color
Polished Chrome
Height
1-7/8
Product Overview
The free swinging CRL Offset Pivot Hinge is perfect for light duty doors, such as partitions and smaller entry doors. Also commonly used for cabinet doors. This Hinge requires only two 5/8" (16 mm) holes in the glass, and is available in popular polished brass and polished chrome finishes. Includes gasket and hole drilling template.
SPECIFICATIONS
The maximum recommended door width using two hinges is 32" (813 mm) and maximum weight should not exceed 96 lbs. (43 kg). The maximum recommended door width using three hinges is 36" (914 mm) and maximum weight should not exceed 140 lbs. (63 kg).
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
