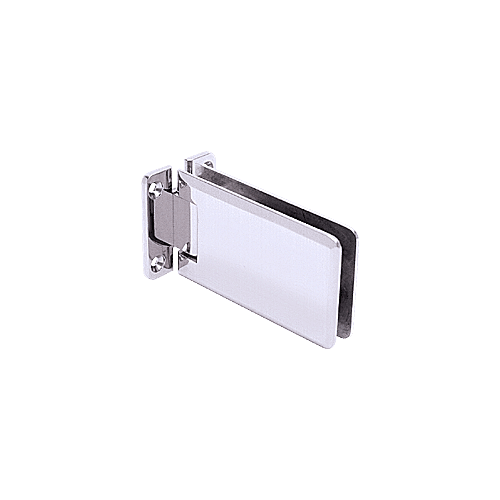

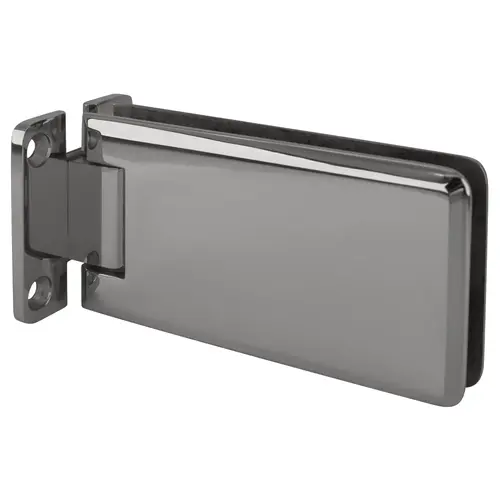

CRL GRA037CH Chrome Grande 037 Series Wall Mount Standard Back Plate Hinge
Item #: GRA037CH by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Can be Side Mounted at Top and Bottom
- Wall Mount Standard Back Plate
Height
2-3/8
Width
4-1/4
Finish
Chrome
Back Plate
Full
Glazing Thickness
5/16 To 3/8
Edge Profile
Beveled
Adjustable
No
Finish/Color
Polished Chrome
5 Degree Pre-Set
No
Maximum Door Width - 2 Hinges (Inches)
31
Maximum Door Width - 3 Hinges (Inches)
34
Maximum Door Weight - 3 Hinges (Pounds)
134
Maximum Door Weight - 2 Hinges (Pounds)
90
Mounting Type
Wall Mount
Material
Brass
The CRL Grande Hinge incorporates a larger clamping surface to provide superior support for frameless shower doors. The beveled edges are an attractive accent to Grande's strong rectangular design, and the Offset Back Plate Wall Mount Model gives a clean exterior appearance. Grande Hinges can be mounted on the top and bottom corners of the door, or anywhere in between. Grande is constructed of solid brass for years of reliable service.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 31" (787 mm).
Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 134 lbs. (61 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Grande can beside mounted at top and bottom corners of the door, or anywhere in between. Corner mounting allows more glass exposure.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Precise Closing to 0 degree
Cut-Out and Hole Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
