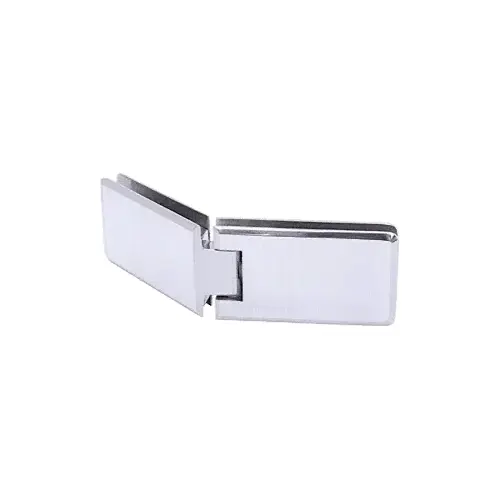

CRL GRA135CH Chrome Grande 135 Series 135 Degree Glass-to-Glass Hinge
Item #: GRA135CH by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Can be Side Mounted at Top and Bottom
- 135º Glass-to-Glass
8-1/2" (216 mm)
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 31" (787 mm).
Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 134 lbs. (61 kg) with a maximum door width of 34" (864 mm).
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Grande can beside mounted at top and bottom corners of the door, or anywhere in between. Corner mounting allows more glass exposure.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Precise Closing to 0 degree
Cut-Out and Hole Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
