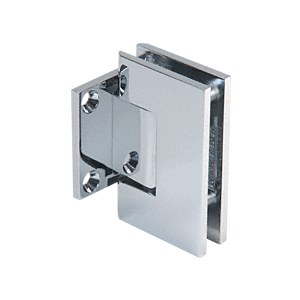

CRL JRG574CH Chrome Junior Geneva 574 Series Wall Mount Short Back Plate Hinge With 5 Degree Pin Preset

The same sophisticated European design that has made our Geneva Series so prominent is accessible in a miniature version, the junior Geneva, to offer flexibility of application. Used to accommodate 1/4" (6 mm) to 5/16" (8 mm) thick glass, the junior Geneva is made of strong brass. There are three wall mount styles alongside 90º, 135º, and 180º Glass-to-Glass styles. The Junior Geneva is self-focusing and accessible in up to 12 stock completions. They contain an alterable pivot pin for optional 5º tighter door closure. Standard reversible pivot pin: Every junior Geneva hinge contains an alterable pivot pin. One side of the pin is tagged at 90º. The inverse side of the pin is tagged 85º, which will permit the door to close 5º further into the shower. The pin can be turned (not flipped upside down) to initiate the other side. CUSTOM Pivot Pin: Custom pivot pins are accessible to accommodate "off-angle" establishments. As an example, you might collision a wall that will not meet your door at 90º. If the standard 5º pivot pin contained in the hinge does not help with shutting the door to the desired position, you may specify the angle required for a custom pivot pin (up to 45º). Utilizing two hinges with 1/4" to 5/16" glass (6 to 8 mm) the hinge will hold up to 62 lbs. (28 kg) with an extreme door width of 28" (711 mm). Utilizing three hinges with 1/4" to 5/16" glass (6 to 8 mm) the hinge will hold up to 92 lbs. (42 kg) with an extreme width of 32" (813 mm). SPECIFICATIONS: Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass Special Features: Most models offer a choice of Standard Model, factory set at standard closing position (0º), or 5º Pre-Set Model for tighter closure into shower interior. All models contain a Reversible 5º Pivot Pin. When activated, it allows 5º tighter door closure. Construction: Solid Brass Hinge Swings: 90º In and 90º Out Closing Type: Self-Centering when within 15° of closed position. Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions Important Notes NOTE: All C.R. Laurence Hinges in this catalog are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the C.R. Laurence Technical Sales Department.NOTE: Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

From Manufacturer

The same elegant European design that has made our Geneva Series so popular is available in a smaller version, the Junior Geneva, to offer flexibility of application. Used to accommodate 1/4" (6 mm) to 5/16" (8 mm) thick glass, the Junior Geneva is made of solid brass. There are three Wall Mount styles along with 90º, 135º, and 180º Glass-to-Glass styles. The Junior Geneva is self-centering and available in up to 12 stock finishes. They contain a Reversible Pivot Pin for optional 5º tighter door closure.
STANDARD REVERSIBLE PIVOT PIN: Each Junior Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90º. The opposite side of the Pin is marked 85º, which will allow the door to close 5º further into the shower. The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90º. If the standard 5º Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45º).
Using two hinges with 1/4" to 5/16" glass (6 to 8 mm) the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 1/4" to 5/16" glass (6 to 8 mm) the hinge will hold up to 92 lbs. (42 kg) with a maximum width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Most models offer a choice of Standard Model, factory set at standard closing position (0º), or 5º Pre-Set Model for tighter closure into shower interior. All models contain a Reversible 5º Pivot Pin. When activated, it allows 5º tighter door closure.
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15° of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication DimensionsImportant Notes

NOTE: All C.R. Laurence Hinges in this catalog are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the C.R. Laurence Technical Sales Department.NOTE: Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
