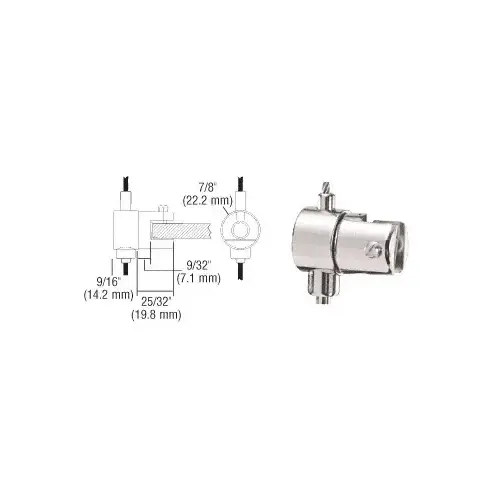

CRL CB100 Chrome Plated Adjustable Single Shelf Brackets for the Cable Display System
Item #: CB100 by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For 1/4" and 5/16" (6 to 8 mm) Panels
- Securely Holds Shelves or Panels with Angle Adjustment Options
Each Column (4 cables) Can Bear A Total Weight Of Up To 80 lbs. Each Shelf Can Bear A Total Weight Of 20 lbs.
The CRL Adjustable Single Shelf Bracket for the Cable Display System has a highly efficient and secure set screw clamping system that permits the installed panel to be angled or tilted to enhance your display or for signage purposes. To adjust the brackets to the desired angle, the "push tubes" are depressed and the brackets are moved down the cable to achieve the necessary angle. For signage only two cables need to be installed at the proper distance apart to accommodate the width of your sign or decorative panel.
The Fixed Brackets are very easily installed by inserting the stainless steel cable end thru the Bracket lower push tube. When the "push tube" is depressed, the Bracket can be adjusted to the desired position on the cable. The Brackets will stay firmly and securely in place on the 2mm cable. To re-position the Brackets, simply depress the "push tube" and slide the Bracket up or down on the cable. The Brackets are designed to accommodate 1/4" to 5/16" (6 to 8 mm) panels. One each minimum order.
WEIGHT LIMITATIONS: When properly installed, each column (4 cables) can bear a total weight of up to 80 lbs. (36kg.). Each shelf can bear a total weight of 20 lbs. (9kg.), when used with CB74, CB76 and CB78 Ceiling Mount Fittings.
If CB112 and CB114 Hanger Pipe Base Fittings are properly anchored and used as ceiling attachments, each column (4 cables) can bear a total weight of 40 lbs. (18 kg).
