Each package contains one complete set consisting of: One upper hinge, one lower hinge, two screws, one 'L' plastic gasket, and one flat plastic gasket. When doors are closed a positive positioning keeper maintains them at a true 90 degrees. The maximum recommended door width is 22" (559 mm). Maximum weight should not exceed 25 lbs. (11.3 kg). Minimum clearance required is 1/4" (6 mm) top and 1/4" (6 mm) bottom. One set top and bottom per pack.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL ALUM-EH232-VCP-1 Chrome Showcase Pivot Hinges for 3/16" Glass - pack of 2
Item #: ALUM-EH232-VCP-1 by CR Laurence
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Also Available in Brass Finish
- Easy-to-Install
- For 3/16" (5 mm) Glass
- No Holes or Cut-Outs Required

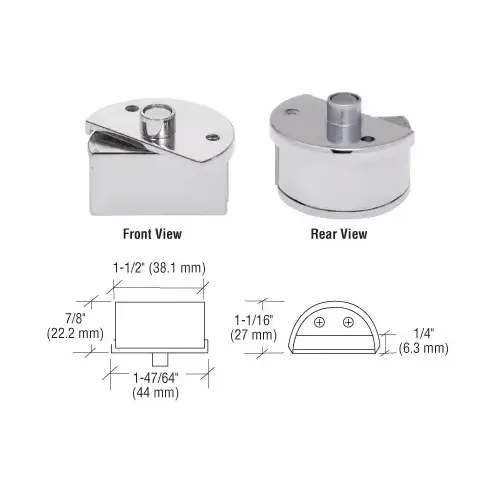

Depth
1-1/16 in (27 mm)
Height
7/8
Width
1-47/64
Glass Size
3/16" (5 mm)
Finish
Polished Chrome
Weight Capacity
25
Material
Brass
Glazing Thickness
3/16
Maximum Door Width
22
Finish/Color
Polished Chrome
Product Overview
Each package contains one complete set consisting of: One upper hinge, one lower hinge, two screws, one 'L' plastic gasket, and one flat plastic gasket. When doors are closed a positive positioning keeper maintains them at a true 90 degrees. The maximum recommended door width is 22" (559 mm). Maximum weight should not exceed 25 lbs. (11.3 kg). Minimum clearance required is 1/4" (6 mm) top and 1/4" (6 mm) bottom. One set top and bottom per pack.
