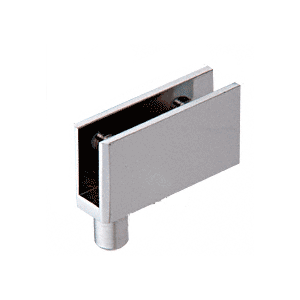

CRL EH324 Chrome Wide Glass Door Pivot Hinge

  • For 1/4" to 5/16" (6 to 8 mm) Glass
  • No Holes or Cut-Outs Required on Glass Door
  • Several Finishes
  • 13/32" (8.7 mm) Top/Bottom Mounting Hole Required
See Full Product Description

Additional options:

SALE

$42.27 /package

Qty

In Stock
Quick Shipping

Usually ships in 1 business day*

Additional options:

SALE
+
In Stock Quick Shipping

Usually ships in 1 business day*

Have a Question?

Chat with our Expert


Description

  • For 1/4" to 5/16" (6 to 8 mm) Glass
  • No Holes or Cut-Outs Required on Glass Door
  • Several Finishes
  • 13/32" (8.7 mm) Top/Bottom Mounting Hole Required

  • Product Description
  • Technical Details 3
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Minimum Order

1 Package

Finish

Chrome

  • For 1/4" to 5/16" (6 to 8 mm) Glass
  • No Holes or Cut-Outs Required on Glass Door
  • Several Finishes
  • 13/32" (8.7 mm) Top/Bottom Mounting Hole Required
Installs in seconds, CRL's Wide Glass Door Pivot Hinges are similar to Cat. No. EH224 and Cat. No. EH226 but will accommodate larger and heavier doors. Simply tighten two set screws to secure to glass from 1/4" to 5/16" (6 to 8 mm) thick.
  • • Maximum recommended door width is 20" (508 mm).
  • • Maximum weight should not exceed 28 lb. (12.7 kg).
  • • One set "top and bottom" per pack.
  • Important Notes:
  • • Minimum clearance required = 5/16" (7.9 mm) top and 5/16" (7.9 mm) bottom.
  • • INSTALLER determines the desired Width deductions considering clearance for Hardware, Locks, etc. (1/8" on hinge side, 1/8" between Doors is ideal)
  • • Mounting/Pivot Pin = 3/8" from edge of Hinge to center of Pin
