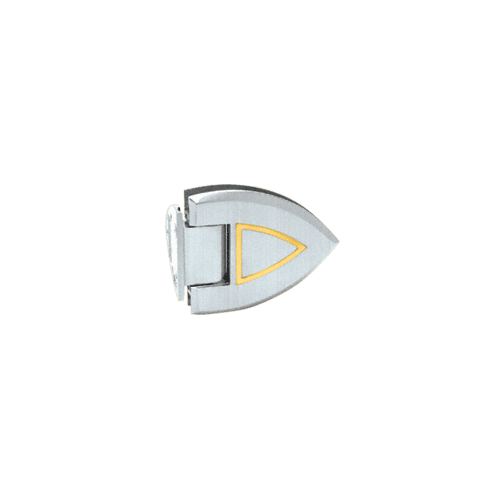

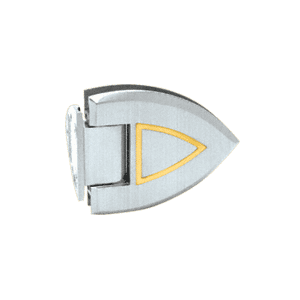

CRL CAT044CH Chrome with Gold Plated Accents Cathedral 044 Series Wall Mount Offset Back Plate Hinge

1 reviews

$146.17 /each In Stock

Item #: CAT044CH by CR Laurence

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

CRL CAT044CH Chrome with Gold Plated Accents Cathedral 044 Series Wall Mount Offset Back Plate Hinge

1 1 reviews

$146.17 /each In Stock

Item #: CAT044CH by CR Laurence

QUICK SHIPPING*

Usually ships in 1 business day

QTY
+
+ Add to Wishlist
Buy In Bulk

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

  • Unique Two-Tone Design
  • Available in Several Beautiful Finishes
  • Wall Mount Offset Back Plate (Allows Clean Sight Line From Shower Exterior)

Minimum Order

1 Each

Height

3-1/2" (89 mm)

Width

4-1/4" (108 mm)

Finish

Chrome with Gold Plated Accents

The CRL Cathedral Series Hinge combines a unique two-tone accent design (for most models) with a positive hold cut-out and through-stud system. Cathedral offers the same internal mechanism as our popular Geneva Series, and contains a Reversible Pivot Pin for optional 5º tighter door closure. The "GENP1N" Custom Pivot Pin is available for "off-angle" installations.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 95 lbs. (43 kg) with a maximum door width of 34" (864 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (64 kg) with a maximum door width of 38" (965 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Features: Most models have a unique two-tone design that provides design flexibility when attempting to match split finish color décors.
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out and Hole Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
