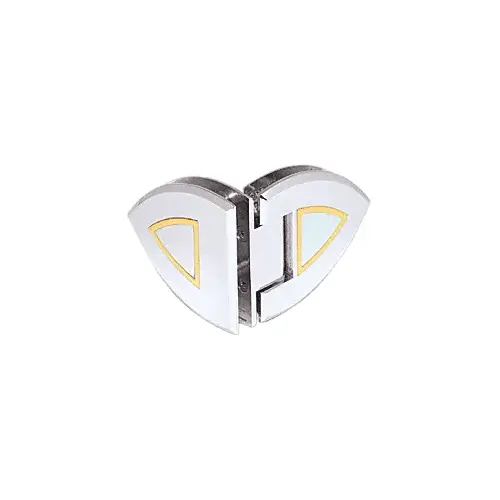

CRL CAT090CH Chrome with Gold Plated Accents Cathedral 090 Series 90 Glass-to-Glass Hinge
Item #: CAT090CH by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Unique Two-Tone Design
- Available in Several Beautiful Finishes
- 90º Glass-to-Glass
4-1/4" (108 mm)
3-1/2" (89 mm)
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 95 lbs. (43 kg) with a maximum door width of 34" (864 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (64 kg) with a maximum door width of 38" (965 mm).
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Features: Most models have a unique two-tone design that provides design flexibility when attempting to match split finish color décors.
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out and Hole Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
