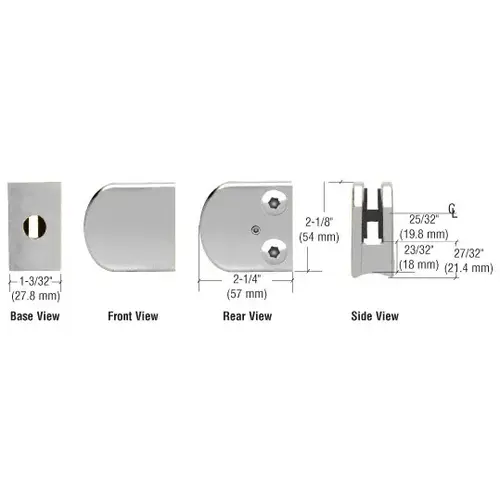

CRL Z110CH Chrome Z-Series Large Round Clamp for 3/8" Glass
Item #: Z110CH by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For 3/8" (10 mm) Glass
- Use Monolithic Tempered Glass
- An Excellent Choice for Partitions, Mezzanines, Wind Breaks, Railings and Much More
- May Be Used on Wood or Metal Radius
- May Be Used on Wood or Metal Radius or Flat Surfaces
- Custom Painted Finishes Available Upon Request
Height
2-1/4
Shipping Weight
1 lb (454g)
Width
2-1/8
Glass Thickness
3/8" (10 mm)
Finish
Chrome
Type
Fits 3/8" Glass
Material
Zinc
Depth
1-3/32
Glazing Thickness
3/8
Profile
Round
Finish/Color
Chrome
CRL Z-Series Clamps are available in your choice of round or square shapes, and come in either economical zinc, or durable stainless steel construction. The Z110 Series Glass Clamps are designed to accommodate a glass thickness of 3/8" (10 mm).
The radius base design can be applied on 2" (51 mm) tubing. By drilling a notch in the glass, the pin included with each clamp can be used to eliminate glass slippage. Popular applications are partitions, mezzanines, wind breaks, railings and other commercial uses. CRL Cat. No.'s ZB0LT14 (Bolt) and RN1420 (Rivet-Nut) are used for securing Z-CLAMP to tubing. Appropriate gaskets are included with each clamp.
Glass Fabrication: 1/2" (12 mm) notch is required if using provided steel pin.
Replacement Hardware: CRL P612 for Replacement Screws
Product Warning:
For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
