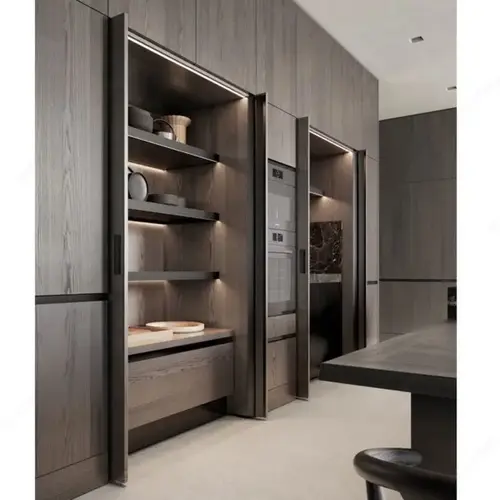

CINETTO 189PB15KT27L PB15 Pivot and Slide-In Series
Item #: 189PB15KT27L by CINETTO
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Application
Wardrobe, Pantry, Storage
Load Capacity
66.1 lb
Door Thickness
23/32 to 31/32 in
Door Width
15 3/4 to 27 1/2 in
Door Height
63 to 78 3/4 in
Door position
Inset/Inlay
Adjustable
Yes
Product Type
Hardware
Number of Doors
1
Door Material
Wood
Door Installation
Left hand
Detailed Door Movement
Pocket door
Door Movement
Pivot and Slide
Product Overview
No springs and cords
The CINETTO PB15 Series is a pivot and slide-in universal pocket door system for single wood doors weighing up to 30 kg (66 lbs) each. The system is compatible with many brands of standard concealed Euro-style cabinet hinges (sold separately).
Features:
- Assist self-opening without the use of springs or pull cords
- For doors 18 mm to 25.4 mm (3/4 in to 1 in) thick
- Select from left or right-hand opening kits and three different door height ranges
- The mechanism retracts into a small parking area
- Equipped with integrated dampeners for smooth operation
- Accessories for Connector Brackets to support external cover panel and Bridge Connector Brackets between two cabinets available, sold separately
- Simple to adjust in multiple directions from the front of the cabinet
- Installs in a few simple steps by hand or pre-drilled on CNC
- Assembly and installation instructions are easy to understand without a configurator
IMPORTANT:
Follow instructions step by step and in sequence. Use metric dimensions for best accuracy during installation.
Recommend inset hinge characteristics: max. 90-94 degrees. Use angle limiter for 110 degree hinge
Cut groove 11 mm wide x 8 mm deep at top of door when using support bracket for cover panel.
The CINETTO PB15 Series is suitable for kitchens, pantries, wardrobes, laundry rooms, meeting rooms, and storage cabinets.
Advantages And Benefits
- Assist self-opening without springs or pull cords
- Compatible with many brands of standard concealed Euro-style cabinet hinges (sold separately)
- Accessories for Connector Brackets to support external cover panel and Bridge Connector Brackets between two cabinets available, sold separately
- Simple adjustment
- Installs in a few simple steps by hand or pre-drilled on CNC
- Easy-to-understand instructions-- no need for a configurator
Important Information
Use metric dimensions for greater accuracy during installation.
Please make sure to read the entirety of the installation manual before proceeding with the installation.
Always remove debris/dust/residue (sawdust and/or aluminum) from all tracks and guide channels using a dry cloth during installation and before operating the system.
Never spray lubricant on this product.
Do not exceed stated limitations and parameters. This will cause early wear and performance failure.
The CINETTO PB15 Series is a pivot and slide-in universal pocket door system for single wood doors weighing up to 30 kg (66 lbs) each. The system is compatible with many brands of standard concealed Euro-style cabinet hinges (sold separately).
