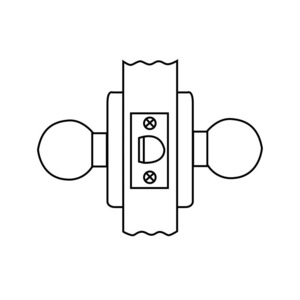

Corbin Russwin CK4332 GRD 630 CK4332 Institution Lockset, Satin Stainless Steel

1 reviews

$626.22 /each In Stock

Item #: CK4332 GRD 630 by Corbin Russwin

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

Corbin Russwin CK4332 GRD 630 CK4332 Institution Lockset, Satin Stainless Steel

1 1 reviews

$626.22 /each In Stock

Item #: CK4332 GRD 630 by Corbin Russwin

QUICK SHIPPING*

Usually ships in 1 business day

QTY
+
+ Add to Wishlist
Buy In Bulk

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

  • Handing Non-handed.
  • Door Thickness 1-3/8" (35mm) – 2" (51mm).
  • Backset 2-3/4" (70mm) standard.
  • Lock Chassis Steel, zinc dichromated for corrosion resistance.
  • Front Wrought brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates doors beveled 1/8" (3mm) in 2" (51mm).
  • Latchbolt Stainless Steel 1/2" (13mm) throw, 7/8" (22mm) diameter.
  • Strike Wrought brass or stainless steel, ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available
  • Cylinder Brass, 6-pin, L4 keyway, 0-bitted standard.

Thickness

1-3/8" - 2"

Strike Number

SA118

Package Volume

171

Latch Number

787F66

Color

Satin Stainless Steel

Function

32-Institution/Utility

Latch Type

Dead Latch (Guarded)

ANSI Function

F87 - Asylum

Hand

Not Handed

Grade

ANSI/BHMA Grade 1

Fire Rated

3 Hours {A}

Special Marks

Conventional cylinder, Fire rated 3 Hours {A}

Key(s)

Blank

Strike Width

1-1/4"

Latch Backset Dim

2-3/4"

Cylinder Type

Conventional Cylinder

Lock Face Size

2-1/4" x 1-1/8"

Package Qty

1

Package Height

4"

Screws

Combination

Keying

0 Bitted

Package Width

4.5"

Bolt Protection

1/2"

Color Code

630/US32D

Strike Type

ASA

Rose/Escutcheon Design

D - Rose

Keyway

Corbin Russwin L4

Strike Height

4-7/8"

Lever/Knob Design

GR - Global

Package Length

9.5"

Finish

Satin Stainless Steel

Backset

2-3/4", 1-1/8" x 2-1/4", Square Corner

Finish Description

Satin Stainless Steel

Knob style

GRD-Global

Keyblank Grouping

CRRS-L4-6-1

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Strike

ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner

Projection

2.2500

Door Thickness

1-3/8" - 2"

Knob Diameter

2.2500

ADA Approved

False

Keying Charges

CCAM

Bore Size

2.1250

Institution with Global Knob, 630 Satin Stainless Steel, Keyed Random, ANSI Strike, 2-3/4" Backset
CK4300 Series Cylindrical Knob Locksets

The CK4300 Series is ideal for demanding, high-use commercial, industrial and institutional applications, including:

  • Schools
  • Hotels
  • Apartments
  • Hospitals and nursing homes
  • Churches
  • Municipal buildings and offices
  • Airports
  • Retail complexes
  • Warehouses


Certification:

Certified and meets A156.2 Series 4000, Grade 1.

Features
  • Handing- Non-handed.
  • Door Thickness- 1-3/8" (35mm) – 2" (51mm).
  • Backset- 2-3/4" (70mm) standard.
  • Lock Chassis- Steel, zinc dichromated for corrosion resistance.
  • Front- Wrought brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates doors beveled 1/8" (3mm) in 2" (51mm).
  • Latchbolt- Stainless Steel 1/2" (13mm) throw, 7/8" (22mm) diameter.
  • Strike- Wrought brass or stainless steel, ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available
  • CylinderBrass, 6-pin, L4 keyway, 0-bitted standard.
  • KeyingFeaturesAvailable: Master keying Construction master keying, Visual key control, Concealed key control, Conventional 6-pin, Security, Pyramid Security, Pyramid High Security, Access 3® Patented, Access 3® Security, and Access 3® High Security.
  • Keys- Two nickel silver standard.
  • Warranty- Three-year limited.

This product contains 2 cylinders per lock and is typically keyed alike in quantities of 1.
