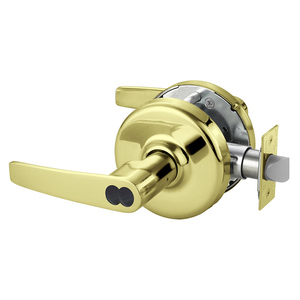

Corbin Russwin CL3851 AZD 605 CL6 Cylindrical Lock Bright Brass
Item #: CL3851 AZD 605 CL6 by Corbin Russwin
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Lever Release™ for vandal resistance
- Solid cast levers
- ANSI Grade 2 certification
- UL 3-hour fire rating
- Independent lever return springs
- Through-bolts on door for solid attachment
- Covers ANSI/DHI door prep A115.18 - 1994 “Spider Cut Out”
Package Length
10"
Lever/Knob Design
AZ - Armstrong
Strike Height
4-7/8"
Base Material
Brass
Rose/Escutcheon Design
D - Rose
Strike Type
ASA
Color Code
605/US3
Case Volume
2359.875
Bolt Protection
1/2"
Package Width
7.5"
Case Height
10.5"
Screws
Combination
Package Height
4.5"
Package Qty
1
Case Length
15.5"
Lock Face Size
2-1/4" x 1-1/8"
Cylinder Type
Corbin Russwin 6-Pin LFIC Less Core
Latch Backset Dim
2-3/4"
Strike Width
1-1/4"
Special Marks
Full size/large format interchangeable core, Fire rated 3 Hours {A}
Fire Rated
3 Hours {A}
Grade
Grade 2
Hand
Not Handed
ANSI Function
F109 - Entry/Office
Latch Type
Dead Latch (Guarded)
Function
51-Entrance or Office
Case Width
14.5"
Color
Bright Brass
Latch Number
600F10
Package Volume
337.5
Strike Number
217L13
Thickness
1-3/8" - 1-3/4"
Product Overview
Entrance Lever, Grade 2, AZD Design, 6-Pin LFIC Prep, Less Core, Bright Brass
An economical, Grade 2 standard-duty lever lockset which provides an outstanding combination of value and performance. ItÍs the ideal lever lockset for standard commercial applications. When used in conjunction with the CL3300 Series Extra Heavy-Duty Grade 1 and the CL3500 Series Heavy-Duty Grade 1 Cylindrical Lever Locksets, the overall cost of many projects may be reduced without compromising functionality and durability. Typical applications
Grade 2 standard-duty lever lockset that provides a combination of value and performance.
The CL3800 Series is ideal for standard commercial applications such as interior offices, closets, multifamily housing, restaurants, and retail complexes.
