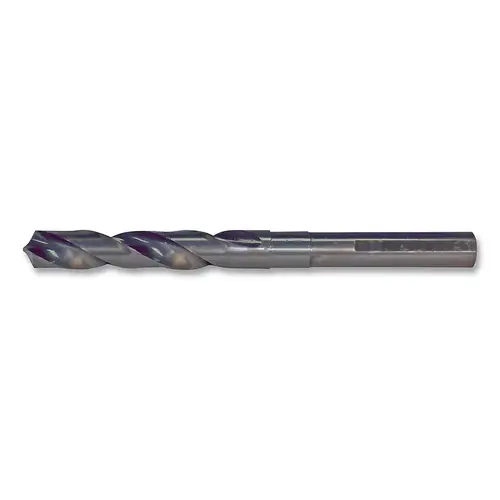

Cle-Line C20672 Series 1892 General Purpose Silver & Deming Drill Bit, 17/32 in Cutting Diameter, 118 degree Point Angle, 6 in OAL Coated
Item #: C20672 by Cle-Line
UPC #: 697334206729
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Steam oxide
Bit Length
0.5 in
Shank Type
Reduced
Flute Length
3.125 in
Point Angle
118°
Cutting Diam [Nom]
17/32 in
Overall Length [Nom]
6 in
Flute Type
Spiral
Number of Flutes
2
Tool Material
High-Speed Steel
Cutting Direction
Right Hand
Series
1892
Point Type
Standard
Drill Length Type
Reduced Shank
Coolant
No
Spiral Type
Regular
Coating/Finish
Coated
Drill Bit Size (Decimal Inch)
0.5313
Drill Bit Size (Inch)
17/32
Flute Length (mm)
79.38
Number of Flats
3
Overall Length (Decimal Inch)
6.0000
Overall Length (Inch)
6
Primary Workpiece Material
Cast Iron
Primary Workpiece Material Code
K
Shank Diameter (Decimal Inch)
0.5000
Shank Diameter (Inch)
1/2
Shank Diameter (mm)
12.70
Shank Length (Decimal Inch)
2.2500
Shank Length (mm)
57.15
Tool Performance
General Purpose
Vendor Drop Ship
N
Drill Bit Diameter Tolerance
+0.0000 to -0.0012 in
Drill Point Angle
118
Maximum Drilling Depth (mm)
79.38
Product Overview
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials
Oxide coating prevents chip building, galling and welding on the work piece, it is commonly used on low carbon metals, stainless steel and ferrous metals
Round shanks with flats are ground flat on three sides for increased chuck grip, reducing slippage and help centering the drill in the chuck.
Oxide coating prevents chip building, galling and welding on the work piece, it is commonly used on low carbon metals, stainless steel and ferrous metals
Round shanks with flats are ground flat on three sides for increased chuck grip, reducing slippage and help centering the drill in the chuck.
