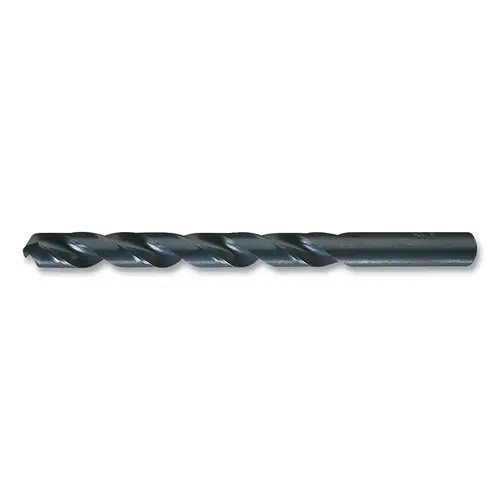

1899 General Purpose Black Oxide Jobber-Length Drill Bit, 0.2656 in dia Cutting, 4.125 in OAL, 17/64 in

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Cle-Line C22724-XCP1 1899 General Purpose Black Oxide Jobber-Length Drill Bit, 0.2656 in dia Cutting, 4.125 in OAL, 17/64 in

Item #: C22724-XCP1 by Cle-Line

UPC #: 697334227243

See reviewsSee reviews
See reviews summary
In Stock

$4.89

/each
SAVE UP TO 0.49
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 88 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Type

Style 1899

Shank Type

Straight

Flute Length

2.875 in

Point Angle

118° RHS/RHC

No of Flutes

2

Point Shape

Radial

Nominal Diameter

17/64 in

Cutting Diam [Nom]

0.2656 in

Overall Length [Nom]

4.125 in

Finish

Black Oxide

Material

High-Speed Steel (HSS)

Bit Length

4.125 in

Web Thinning

Web-Thinned

Web Configuration

Tapered

Drill Bit Finish/Coating

Oxide

Drill Bit Diameter Tolerance

+0.0000 to -0.0010 in

Vendor Drop Ship

N

UNSPSC Code

23241634

Tool Performance

General Purpose

Shank Length (mm)

31.75

Shank Length (Decimal Inch)

1.2500

Shank Diameter (mm)

6.75

Shank Diameter (Inch)

17/64

Shank Diameter (Decimal Inch)

0.2656

Primary Workpiece Material Code

K

Primary Workpiece Material

Aluminum

Overall Length (Inch)

4-1/8

Overall Length (Decimal Inch)

4.1250

Flute Length (mm)

73.03

Flute Length (Inch)

2-7/8

Flute Length (Decimal Inch)

2.8750

Drill Point Angle

118 degrees

Drill Bit Size Range (Decimal Inch)

0.2500 - 0.3000

Drill Bit Size (Inch)

17/64

Drill Bit Size (Decimal Inch)

0.2656

Drill Bit Grade

General Purpose

Coolant Through

No

Spiral Type

Regular

Drill Bit Material

High Speed Steel

Point Type

Standard

Series

1899

Cutting Direction

Right Hand

Standards

ASME B94.11M

Number of Flutes

2

Overall Length (mm)

104.78

Flute Type

Spiral

Product Overview
Manufactured from premium high-speed steel (HSS)
Black oxide surface finish increases wear resistance and adds lubricity to improve chip flow
For general purpose drilling and maintenance applications.
