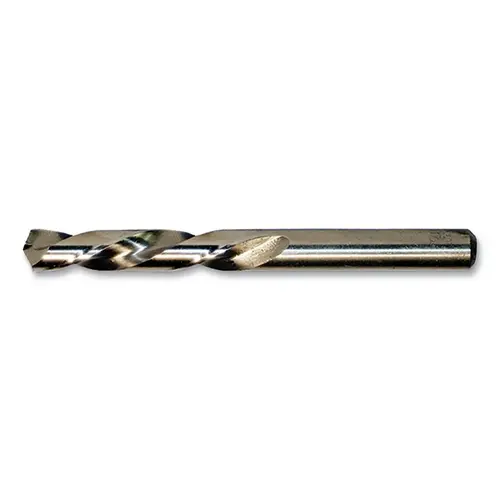

Cle-Line C30522-XCP1 1880 Left-Hand Mechanics-Length Cobalt Straw Oxide Drill Bit, 11/32 in dia Cutting, 3-15/16 in OAL Gold
Item #: C30522-XCP1 by Cle-Line
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Straw Oxide
Material
HSS-CO
Bit Length
3-15/16 in
Type
Style 1880
Shank Type
Straight
Flute Length
2-1/4 in
Point Angle
118° LHS/LHC
No of Flutes
2
Point Shape
Split
Cutting Diam [Nom]
11/32 in
Overall Length [Nom]
3-15/16 in
Flute Type
Spiral
Overall Length (mm)
100.01
Standards
ASME B94.11M
Tool Material
Cobalt
Cutting Direction
Left Hand
Series
1880
Point Type
Split
Drill Length Type
Mechanics
Spiral Type
Regular
Coating/Finish
Gold
Coolant Through
No
Drill Bit Size (Decimal Inch)
0.3438
Drill Bit Size (Inch)
11/32
Drill Bit Size (mm)
8.73
Flute Length (Decimal Inch)
2.2500
Flute Length (Inch)
2-1/4
Overall Length (Decimal Inch)
3.9375
Overall Length (Inch)
3-15/16
Primary Workpiece Material
Superalloy
Primary Workpiece Material Code
H
Shank Diameter (Inch)
11/32
Tool Performance
General Purpose
Vendor Drop Ship
N
Drill Point Angle
135
Web Configuration
Tapered
Web Thinning
Web-Thinned
Product Overview
Manufactured from cobalt high-speed steel (HSS)
Straw finish adds lubricity and easily identifies cobalt drills
Superior rigidity in portable drilling.
Straw finish adds lubricity and easily identifies cobalt drills
Superior rigidity in portable drilling.
