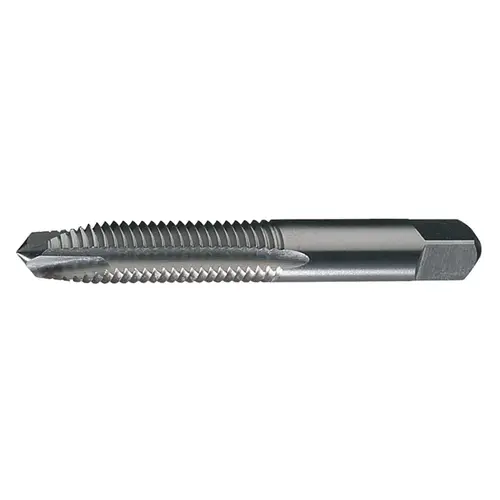

Cle-Line C62151 0411 #4-40 UNC H2 Spiral Point Machine Tap - 2 Flute - Bright Finish - High-Speed Steel - 1.875" Overall Length - C
Item #: C62151 by Greenfield Industries
UPC #: 697334621515
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Thread Size
#4-40 UNC
Shank Configuration
Straight with Square
Number of Flutes
2
Thread Length
0.5625"
Tap Construction
Plug
Style
0411
Shank Size
0.141"
Overall Length
1.875"
Flute Type
Straight
Product Type
Spiral Point Machine Tap
Material
High-Speed Steel
Length of Cut
2"
Tap Limit
H2
Application
Through-Hole Threading
Material Application
Steel
Overall Length (mm)
47.63
Thread Direction
Right Hand
Threads Per Inch
40
Series
0411
Thread Length (mm)
14.29
Thread Standard
UNC
Chamfer
Plug
Class Of Fit
2B/3B
Coating/Finish
Bright/Uncoated
Coolant Through
No
Overall Length (Decimal Inch)
1.875
Overall Length (Inch)
1-7/8
Oversize
No
Shank Diameter (Decimal Inch)
0.1410
Shank Diameter (mm)
3.58
Square Size (mm)
2.79
Thread Length (Decimal Inch)
0.5625
Thread Length (Inch)
9/16
Thread Size (Inch)
#4-40
UNSPSC Code
23241600
Vendor Drop Ship
N
Interrupted Thread
No
Thread Limit
H2
Thread Pitch (Decimal Inch)
0.025
Type
Machine Tap
Measuring System
Imperial
No of Flutes
2
Tap Type
Machine Tap
Cutting Direction
Right
End Shape
Square
Nom. Length
1.875 in
Thread Size [Nom]
#4
Threads Per Inch [Nom]
40
Thread - TPI or Pitch
#4-40 UNC
Shank Size Symbol
Square
Thread Pitch [Nom]
40
Product Overview
The Cle-Line 0411 spiral point machine tap is easy to use. This SKU has a #4-40 UNC thread. In threading applications, a clearance level for the thread is known as the tap limit. In this case, the tap limit is H2. To ensure compatibility with your tool, this part has a 0.141 in straight with square shank. This spiral point machine tap is best used in thru hole applications. This spiral point machine tap is made of high-speed steel with a bright finish. Has a 0411 configuration. The overall length measures 1.875 in. Packaged 6 per case. WARNING: This product can contains Cobalt and/or Nickel and/or Lead, a chemical known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: Specifications
Specifications:
Details in description
Specifications:
Application: Thru Hole
Details in description
