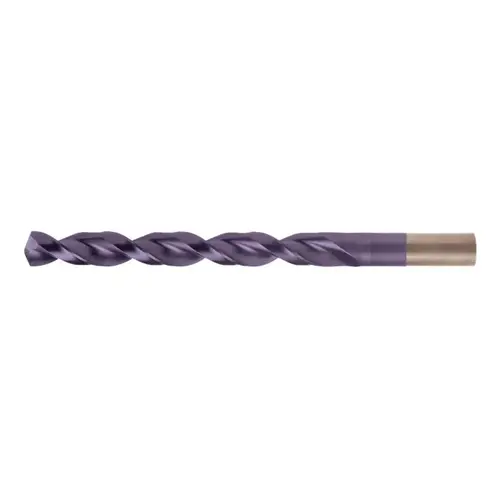

Cleveland C11420 2075-TA #20 Wide Land Parabolic Jobber Drill - Split 135 degree Point - 2.125" Spiral Flute - Right Hand Cut - 3.25" Overall Length - M42 High-Speed Steel - 8% Cobalt - 0.161" Shank - C
Item #: C11420 by Greenfield Industries
UPC #: 697334114208
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Overall Length
3.25"
Material
M42 High-Speed Steel - 8% Cobalt
Style
2075-TA
Shank Size
0.161"
Shank Length
1.125"
Drill Diameter
#20
Point Style
Split
Flute Type
Spiral
Trade Name
Q-Cobalt
Flute Length
2.125"
Number of Flutes
2
Point Angle
135°
Shank Configuration
Straight
Product Type
Jobber Drill
Shank Type
Straight-Cylindrical
Overall Length (mm)
82.55
Standards
ASME B94.11M
Cutting Direction
Right Hand
Series
2075A
Point Type
Split
Drill Bit Material
Cobalt
Coolant Through
No
Drill Bit Size (Decimal Inch)
0.1610
Drill Bit Size (Wire)
#20
Drill Bit Size Range (Decimal Inch)
0.1500 - 0.2000
Drill Point Angle
135 degrees
Flute Length (Inch)
2-1/8
Material Grade
M42
Overall Length (Decimal Inch)
3.2500
Overall Length (Inch)
3-1/4
Primary Workpiece Material
Cast Iron
Shank Diameter (Decimal Inch)
0.1610
Shank Length (Decimal Inch)
1.1300
Shank Length (mm)
28.57
UNSPSC Code
23241634
Vendor Drop Ship
N
Drill Bit Diameter Tolerance
-0.0007 to 0.0000 in
Drill Bit Finish/Coating
TiAlN
Specification Designation
ANSI
Web Configuration
Tapered
Web Thinning
Web-Thinned
Product Overview
The Cleveland Q-Cobalt 2075-TA jobber drill is easy to use. This SKU has a #20 diameter. Always consider the direction of cut and spiral when purchasing cutting tools. This jobber drill has a right hand cut and right hand spiral. This jobber drill comes with 2 flutes, with a flute length of 2.125 in. To ensure compatibility with your tool, this product has a 0.161 in straight shank. The jobber drill has a 135° point for hole making applications. This jobber drill is made of m42 high-speed steel - 8% cobalt with a tialn finish. Has a 2075-TA configuration. The overall length measures 3.25 in. Has a Split point. WARNING: This product can contains Cobalt and/or Nickel and/or Lead, a chemical known to the State of California to cause cancer or birth defects or other reproductive harm. For more information:
Specifications:
Details in description
Specifications:
Hand of Spiral: Right Hand Spiral
Hand of Cut: Right Hand Cut
Series: Wide Land Parabolic
