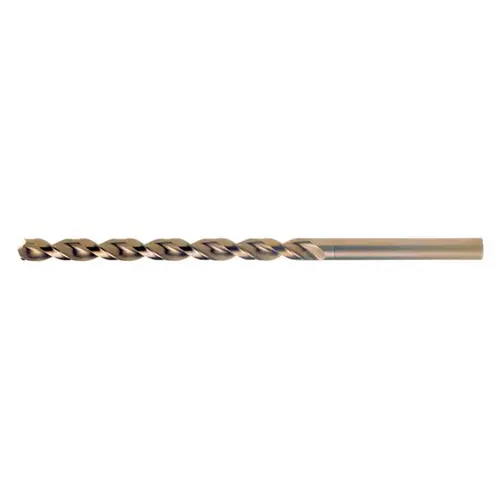

Cleveland C16761 2575 #38 Wide Land Parabolic Taper Length Drill - Split 135 degree Point - 2.5" Spiral Flute - Right Hand Cut - 4.625" Overall Length - M42 High-Speed Steel - 8% Cobalt - 0.1015" Shank - C Coated
Item #: C16761 by Greenfield Industries
UPC #: 697334167617
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Overall Length
4.625"
Material
M42 High-Speed Steel - 8% Cobalt
Style
2575
Shank Size
0.1015"
Shank Length
2.125"
Drill Diameter
#38
Point Style
Split
Flute Type
Spiral
Flute Length
2.5"
Number of Flutes
2
Point Angle
135°
Shank Configuration
Straight
Product Type
Taper Length Drill
Material Application
Aluminum
Shank Type
Straight
Standards
ASME B94.11M
Tool Material
Cobalt
Cutting Direction
Right Hand
Series
2575
Point Type
Split
Coating/Finish
Coated
Coolant Through
No
Drill Bit Grade
Heavy-Duty
Drill Bit Size (Decimal Inch)
0.1015
Drill Bit Size (Wire)
#38
Drill Point Angle
135 degrees
Flute Length (Decimal Inch)
2.5000
Flute Length (Inch)
2-1/2
Flute Length (mm)
63.50
Material Grade
M42
Overall Length (Decimal Inch)
4-5/8
Shank Diameter (Decimal Inch)
0.1015
Shank Diameter (mm)
2.58
Shank Length (Decimal Inch)
2.1250
Shank Length (mm)
53.97
Vendor Drop Ship
N
Drill Bit Diameter Tolerance
+0.0000 to -0.0005 in
Specification Number
DIN 338
Threaded Shank
No
Web Configuration
Tapered
Web Thinning
Web-Thinned
Product Overview
The Cleveland 2575 taper length drill is easy to use. This item has a #38 diameter. Always consider the direction of cut and spiral when purchasing cutting tools. This taper length drill has a right hand cut and right hand spiral. This taper length drill comes with 2 flutes, with a flute length of 2.5 in. To ensure compatibility with your tool, this item has a 0.1015 in straight shank. The taper length drill has a 135° point for hole making applications. This taper length drill is made of m42 high-speed steel - 8% cobalt with a straw finish. Has a 2575 configuration. The overall length measures 4.625 in. Has a Split point. Packaged 10 per case. WARNING: This product can contains Cobalt and/or Nickel and/or Lead, a chemical known to the State of California to cause cancer or birth defects or other reproductive harm. For more information:
Specifications:
Details in description
Specifications:
Series: Wide Land Parabolic
Hand of Cut: Right Hand Cut
Hand of Spiral: Right Hand Spiral
Details in description
