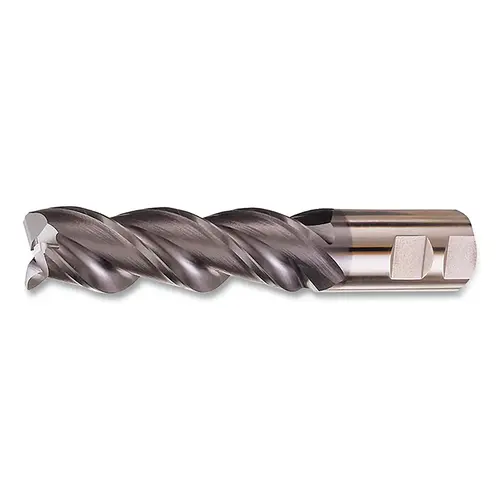

Cleveland C40368 Powder Metal High-Helix Finishing End Mill, Style PM-539R-TC, 1 in dia Milling, 4 in Lg of Cut, TiCN
Item #: C40368 by Cleveland
UPC #: 697334403685
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
TiCN
Shank Type
Straight with Weldon Flat
No of Flutes
3
Nominal Diameter
1 in Milling; 1 in dia Shank
Cutting Length [Nom]
4 in
Overall Length [Nom]
6.5 in
Spiral Angle
Right
For Use With
Toolholder
Flute Type
Spiral
Material Application
Non-Ferrous Metal
End Type
Corner Radius
Number of Flutes
3
Pitch
Coarse
Chipbreaker
No
Length Type
Long
Cutting Direction
Right Hand
Series
PM-539R
Variable Helix
No
Coating/Finish
TiCN
Coolant Through
No
Corner Radius (Decimal Inch)
0.0900
Length Of Cut (Decimal Inch - 4 Decimals)
0.7500
Length of Cut (Inch)
4
Overall Length (Decimal Inch)
6.5000
Overall Length (Inch)
6-1/2
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Shank Diameter (Decimal Inch)
1.0000
Shank Diameter (Inch)
1
UNSPSC Code
27112803
Vendor Drop Ship
Y
Centercutting
Yes
Coating Classification
PVD
End Mill Material
Powdered Metal
Extended Reach
No
Flute Direction
Right Hand
Helix Style
High
Material Removal Type
Finishing
Mill Diameter (Decimal Inch)
1.0000
Mill Diameter (Inch)
1
Single Or Double End
Single
Variable Index
No
Product Overview
High Performance Finisher
Manufactured from high-performance high-speed steel (HSS-E PM)
Available in Bright, Titanium Nitride (TiN), and Titanium Carbo-Nitride (TiCN) finishes.
Manufactured from high-performance high-speed steel (HSS-E PM)
Available in Bright, Titanium Nitride (TiN), and Titanium Carbo-Nitride (TiCN) finishes.
