Features
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Number of Flutes
2
Standards
ASME B94.11M
Cutting Direction
Right Hand
Series
2001G
Point Type
Standard
Drill Bit Material
High Speed Steel
Spiral Type
Regular
Coolant Through
No
Drill Bit Grade
General Purpose
Drill Bit Size (Decimal Inch)
0.4803
Drill Bit Size (mm)
12.20
Drill Bit Size Range (Decimal Inch)
0.4000 - 0.5000
Drill Point Angle
118 degrees
Flute By Diameter Ratio
4xD
Flute Length (Decimal Inch)
3.9760
Overall Length (Decimal Inch)
5.9450
Shank Diameter (Decimal Inch)
0.4803
Shank Length (Decimal Inch)
1.9685
Shank Length (mm)
50.00
Tool Performance
General Purpose
UNSPSC Code
23241634
Vendor Drop Ship
N
Drill Bit Diameter Tolerance
-0.0010 to 0.0000 in
Drill Bit Finish/Coating
Oxide
Drill Bit Size Range (mm)
10.00 - 12.50
Specification Designation
DIN
Specification Number
DIN 338
Web Configuration
Tapered
Web Thinning
Web-Thinned
Product Overview

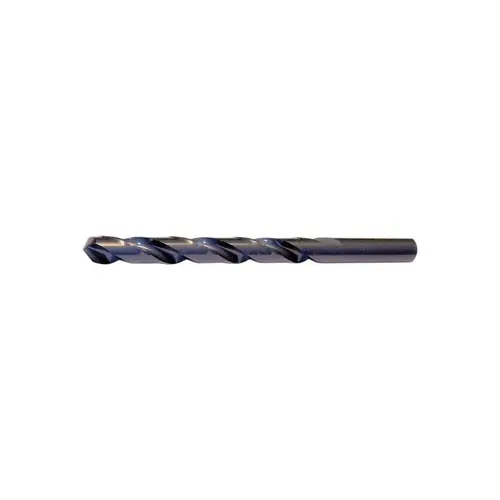

Jobber Length Drill Bit: 12.2 mm Dia, 118 degree, High Speed Steel Oxide Coated, 5.945" OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 2001G
