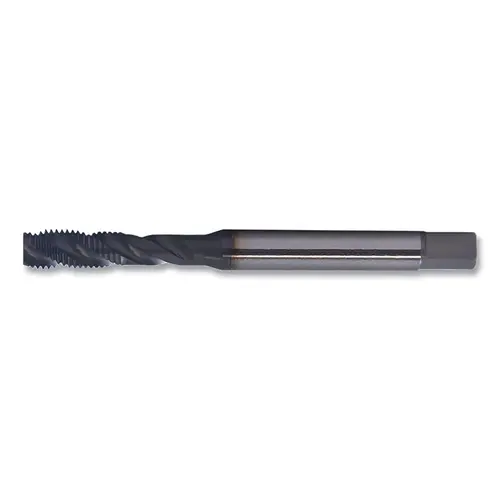

Cleveland C98024 PER-980SF Series Spiral-Flute Tap, 4FLT, 9/16 in-12 UNC, Hardlube
Item #: C98024 by Cleveland
UPC #: 697334980247
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Material
HSS-E
Style
PER-980SF
Drill Bit Diameter
0.5625 in
No of Flutes
4
Tap Type
Machine
Cutting Direction
Right
Outside Diam [Nom]
0.5625 in
Thread Size [Nom]
9/16 in
Threads Per Inch [Nom]
12
Thread - TPI or Pitch
9/16 in-12 UNC
Thread Standard
DIN/ASME
Shank Size Symbol
0.4290 in
Product Overview
These taps are designed for tapping stainless steel
These have a hardlube coating
Sometimes called hardslick, hardlube has an inner layer of titanium aluminum nitride (TiAlN) and an outer layer of tungsten carbide/carbon (WC/C)
The TiAlN layer withstands high temperatures and protects the taps from wear
The WC/C layer has a low coefficient of friction and helps prevent chips from sticking to the tool in dry-machining applications
These taps meet DIN length standards and have a longer overall length than taps that meet ISO, ANSI, and JIS length standards.
These have a hardlube coating
Sometimes called hardslick, hardlube has an inner layer of titanium aluminum nitride (TiAlN) and an outer layer of tungsten carbide/carbon (WC/C)
The TiAlN layer withstands high temperatures and protects the taps from wear
The WC/C layer has a low coefficient of friction and helps prevent chips from sticking to the tool in dry-machining applications
These taps meet DIN length standards and have a longer overall length than taps that meet ISO, ANSI, and JIS length standards.
