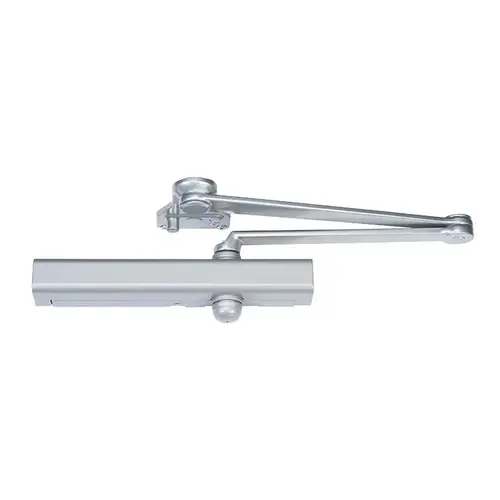

Norton CLP8301 689 8000 Series Surface Door Closer, Aluminum Painted
Item #: CLP8301 689 by Norton
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
- Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with standard cover.
- Closers shall be non-handed to permit installation on doors of either hand.
- Closer fluid shall contain lubricity and anti-oxidation agents.
- Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
- Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
- Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
- Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
- [Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
- Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1/2% ) power adjustment.
- **Closers shall be enclosed in a [molded resin cover] [plated or sprayed metal cover]
- Closers to be Norton® [8301/8501] [8501M] [8501MA] [8501A].
Grade
ANSI/BHMA Grade 1
Application
Offices; Banks; Retail Malls; Hotels; Health Care; Clinics
Cover
Plastic
Type
Surface
Hand
Non-Handed
Color
Aluminum Painted
Color Code
689/US28
Case Length
15.75"
Mounting Style
Parallel Arm
Arm Type
Parallel Arm Heavy Duty
Fire Rated
3 Hours {A}
Origin
USA
Closer Size
Adj. 1 to 6
BAA Qualified
Yes
Package Height
3.5"
Package Length
15.25"
Package Volume
333.59375
Package Width
6.25"
Back Check
Adjustable
Case Height
7.75"
Case Volume
1556.296875
Case Width
12.75"
Cold Weather Fluid
Yes
Degree Swing
85¼ to 110¼
Mounting Location
Push Side
Package Qty
1
Special Marks
Fire rated 3 Hours {A}
Stop
Positive Stop
Base Material
VARIES
Finish
Aluminum Painted
Function
CLP-CloserPlus Arm
Series
8301 Series
Spring Size
1-6
Mount
Parallel Arm (Push Side)
Finish Description
Aluminum Painted
Product Type
Door Closer/Holder/Stop
Maximum Hold-Open
110°
Closer Pinion Diameter
5/8 Inch
Minimum Hold-Open
85°
Manufacturer Parent
Assa Abloy
Handing
Non-Handed
Closer Piston Diameter
1-1/4 Inch
Closer Arm Type
CloserPlus Arm
Mounting Hole Size
3/4" x 12"
Product Width
2-1/8 Inch
Maximum Door Opening
180°
Sub-Series
DC_Surface Mounted Closers_norton_15
ADA Compliant
YES
Mounting Type
Parallel Arm (Push Side)
Closer Clearance
5-7/8 Inch
Product Height
2-7/8 Inch
Closer Arm Extension
8 Inch
Closer Cover
Slim Plastic Cover
Function Family
Non Hold Open Door Closer
Standards
Grade 1 - ANSI/BHMA A156.4; UL listed; UL10c Compliant for Positive Pressure
Door Size
28" to 48"
Door Thickness
1-3/4 inch
Closer Fluid
Closer Fluid
Closer Fluid Temperature Range
Extremely High to as Low as -40°F
Features
Standard; Separate And Independent; Latch; Sweep And Backcheck Intensity Valves; Staked Valves
Product Material
Cast Aluminum
Fastener Type
Self Drilling Screws
Product Length
13 Inch
Closer Hold-Open
false
Warranty
30 Year Limited Warranty
Finish Family
Aluminum
Product Overview
8000 SeriesArchitectural Door Closer
Multi-sized surface closer offering a complete range of arms and a sleek, minimal design suited for moderate- to hightraffic, architectural openings.
Features:- Exceeds 25 million cycles
- Adjustable spring sizes 1 through 6
- Tri-Style® packaging standard (regular arm, top jamb and parallel arm mounting)
- Non-handed
- Staked valves
- Cast aluminum closer body
- Rack and pinion design
- 1-1/4" (32mm) diameter piston
- 5/8" (16mm) diameter pinion journals
- 2-1/8" (54mm) projection (standard covers)
- All standard arm applications (with slim, full or metal covers) allow doors to swing 180 degrees, conditions permitting
- Full size template
- Standard, separate and independent, latch, sweep and back check intensity valves
- Application specific arms: Regular (S), Top Jamb (JS) and Parallel (P)
- Heavy-duty arms; Regular Rigid, Parallel Rigid, CloserPlus®, CloserPlus Spring™, Unitrol®
- Slide Tracks: push or pull side mounting
- 25-year limited warranty
- Lead lined metal cover - suffix MLL
- Metal, architectural plastic or architectural metal covers (8501 only)
- Delayed action
- ANSI/BHMA A156.4, Grade 1 certified
- UL / cUL listed for use on fire rated doors
- UL10C listed for positive pressure fire test
- 8301 and 8501 door closers are designed to comply with requirements for the Americans with Disabilities Act (A.D.A)and ANSI standard A117.1
- This product is manufactured in an ISO 9001, ISO 14001 facility
- Door Closers for Low Opening Force Applications:
- Door closers installed in openings required to meet the requirements of the Americans With Disabilities Act or ANSI/BHMA Standard A117.1, when adjusted to meet those requirements, may not provide adequate closing power to dependably close and latch the door based on opening or site conditions.
