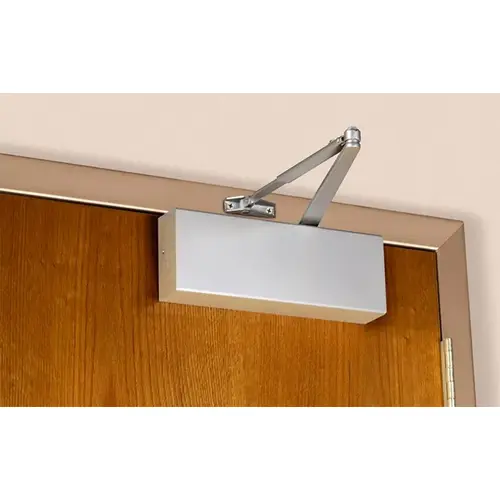

Norton CLP9500 689 CloserPlus Arm for 9500 Series Aluminum Finish

Item #: CLP9500 689 by Norton

See reviewsSee reviews
See reviews summary

$592.12

/each
SAVE UP TO 59.21
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Door closers shall be of rack and pinion construction with a cold headed heat-treated steel spindle and a forged steel piston precision machined and heat treated.
  • The case shall be of cast iron. Closers shall have a heavy-duty, forged steel main arm.
  • Optional arms shall include parallel rigid, parallel rigid friction hold open, regular rigid, CloserPlus®, CloserPlus® hold open, Unitrol®, Unitrol® hold open and track assemblies.
  • The following size options shall be available: Fully adjustable spring power to accommodate sizes 1 through 6.
  • All sizes shall be accommodated in one closer body. Closing shall be controlled by two valves — one to control closing speed and one to control latching speed.
  • Valves shall be concealed against unauthorized adjustment and be non-critical with “O” ring seals.
  • Delayed action shall be available and shall be accomplished with a separate valve.
  • Closers shall be available with an adjustable backcheck intensity valve with a safety feature that automatically relieves internal pressure when backcheck has reached the desired adjustment level.
  • Valves shall be accessible without removing the closer from the door.
  • Closers shall be available with a backcheck intensity valve. Backcheck begins at approximately 70 degrees of door opening for all applications.
  • This valve shall be operative on regular, top jamb, parallel arm, and track type mountings.
  • Closers shall be surface applied with rectangular cover.
  • Closers shall not project over 2-1/4", and shall be capable of mounting on 1-3/4" top rail or inverted mounting on 1-3/4" top jamb.
  • Full cover with security fasteners shall be available.
  • Closers without hold open shall be regularly furnished with power adjustment arm bracket capable of providing a 15% power adjustment.
  • A mounting bracket to attach the closer shall be regularly furnished.
  • Hydraulic fluid shall be of a type requiring no seasonal valve readjustment due to extreme temperature variations.
  • Closers mounted regular arm, top jamb and parallel arm shall allow for full 180° door opening.
  • Closers with non-hold open arms shall be listed by Underwriters Laboratories.
  • All closers with metal covers shall be available in architectural finishes to match corresponding door hardware.

Back Check

Adjustable

Package Volume

333.59375

Stop

Positive Stop

Color

Aluminum Painted

Case Width

12.75"

Hand

Non-Handed

Grade

Grade 1

Fire Rated

3 Hours {A}

Special Marks

Fire rated 3 Hours {A}

Cover

Plastic

Degree Swing

85¼ to 110¼

Type

Surface

Application

Closer Plus Arm

Case Length

15.75"

Package Qty

1

Package Height

3.5"

Case Height

7.75"

Mounting Location

Push Side

Package Width

6.25"

Case Volume

1556.296875

Color Code

689/US28

Origin

USA

BAA Qualified

Yes

Mounting Style

Parallel Arm

Base Material

VARIES

Package Length

15.25"

Cold Weather Fluid

Yes

Arm Type

Parallel Arm Heavy Duty

Closer Size

Adj. 1 to 6

Finish

Aluminum

Function

Regular

Series

9500 Series

Product Overview
CloserPlus Arm for 9500 Series Aluminum Finish
