MLRK1-COR Motorized Latch Retraction Kit for Corbin Russwin 4/5000 & Yale 7000 Series Exit Device

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Command Access Technologies MLRK1-COR-REX MLRK1-COR Motorized Latch Retraction Kit for Corbin Russwin 4/5000 & Yale 7000 Series Exit Device

Item #: MLRK1-COR-REX by Command Access

Brand: Command Access Technologies

See reviewsSee reviews
See reviews summary
In Stock

$606.72

645.00 /each
SAVE UP TO 60.67
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 5 units available

Voltage: 24 to 28 VDC

22 to 28 VDC
24 to 28 VDC
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Voltage

24 to 28 VDC

Electronic

Yes

Parts and Accessories Type

Replacement Parts

MLRK1-COR

With REX - Request-to-Exit

Product Overview

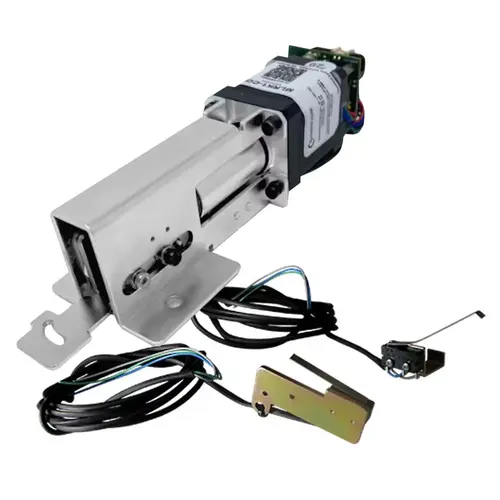

MLRK1-COR

Motorized Latch Retraction Kit for Corbin Russwin 4/5000 & Yale 7000 Series Exit Device

-The MLRK1-COR is a high quality, cost-effective method of converting a Corbin Russwin 4/5000 & Yale
7000 series device to an electrified motor-driven latch retraction exit device. All our kits retract not just the
latch/latches but the push pad too. Allowing electronically dogged devices to remain in a push/pull state for
as long as it is desired. Patent Pending Push to Set (PTS) Technology allows for an easy post-installation
adjustment of the latch/latches. Last but not least, it features our motor module with built-in audible
diagnostics & equipped with 2 different torque settings from energy-conscious, to High Torque to get the
tough jobs done!

Features:

  • MM4S Smart Module: On-board diagnostics with audible feedback for adjustment and power issues
  • PTS": 5-second electronic adjustment for easy post-installation adjustment
  • Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
  • Low Current Draw - Field switchable to High Torque" mode
  • Up to 300 wire run with 2-18ga wire - Long wire runs provide the installer with the convenience of placing the Command locking hardware power supply in a centralized location; i.e., the same closet as
    the access control panel
  • 8 cable with Quick Connect for MM4S Module to easily connect to power supply lead
  • Optional Request-to-exit can be added
  • 3-year no-hassle" warranty

Specifications

Voltage:

  • Voltage range 24 to 28 VDC
  • System protection unit shutdown when voltage exceeds 28VDC
  • Standard Torque - Average Current Peak: 900A, Average Current Hold: 215mA
  • High Torque - Average Current Peak: 2A, Average Current Hold: 250mA
  • PTS adjustment approx. 1/4"

Wire Run:

  • 300 ft with 18ga wire

Product Details:

  • Weight: 2 Lbs

Device Cutdown Details:

  • 36" - 4" from end cap
  • 48" - 10" from end cap

MLRK1-COR Cutsheet

Installation Instructions
