Communicating Passage Monroe Lever Grade 1 Cylindrical Lock Satin Chrome Finish

Roll over image to zoom in

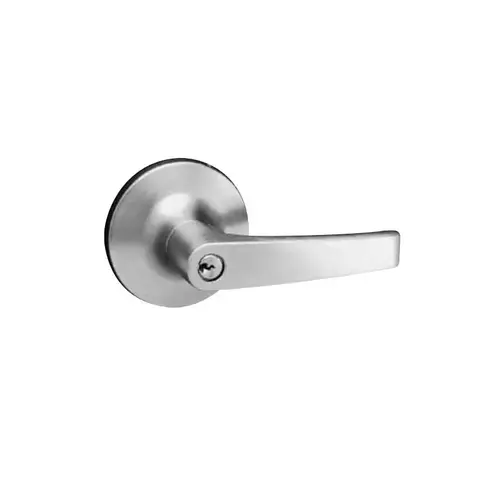

Yale MO5428LN 626 Communicating Passage Monroe Lever Grade 1 Cylindrical Lock Satin Chrome Finish

Item #: MO5428LN 626 by Yale

See reviewsSee reviews

$500.91

/each
SAVE UP TO 50.09

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • ANSI / BHMA A156.2 Grade 1
  • UL Fire Rated Up to 3 Hours
  • Adjustable from 1-3/4" to 2-1/4" Door Thickness
  • 2-1/4" x 1-1/8" Beveled Front Standard
  • Non Handed

Finish

Satin Chrome

Function

Communicating Passage

Series

5400LN Series

Design

Monroe

Strike

1-1/4" Curved Lip

Backset

2-3/4" Backset

Color Code

626/US26D

Fire Rated

3 Hours {A}

Product Overview

Communicating Passage, Cylindrical Lock, MO Lever Design, Satin Chrome

Designed for industrial, commercial and institutional use, the Yale 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it's the favorite among architects and building owners who demand the highest standard of product quality.

Designed for industrial, commercial, and institutional settings.

Designed for industrial, commercial and institutional use, this heavy-duty grade 1 cylindrical lockset offers no compromise when it comes to rugged reliability and performance.

• Free Wheeling lever mechanism increases vandal resistance and reduces the amount of maintenance typically required of locksets with rigid levers.

• 13 finish options.

• 3 lever designs.

• 24 functions including electrified.

• Stainless steel latchbolt provides added strength and wear resistance. Direct 1/2" throw is standard.

• A 3/4" latch throw for fire-rated or pairs of doors is available.

• Wear-resistant plates in the chassis help extend the life of the lockbody and provide smoother lock operation.

• Longer thread locking through-bolts through the chassis provide greater stability and prevent rotation.

• Lifetime warranted heavy-duty lever return springs prevent lever sag and provide positive return of lever to horizontal position.

• Patented (patent no. 6,131,970) door adjustable rose support plates allow for easy adjustment of lockset to fit doors ranging in thickness from 1-3/4" to 2". Rose spacers available for 1-3/8" thick doors.

• Three non-handed lever options (Augusta, Monroe, and Pacific Beach) comply with ADA requirements for easy gripping and operation.

• Expanded cylinder and keying options: - Yale® 6- and 7-pin standard and interchangeable core cylinders including Yale® KeyMark® protected keyway cylinders. - Standard cylinders with Schlage® C and Sargent® LA keyways. Small format interchangeable cores with Best® keyways. - Levers which accept interchangeable core cylinders by Best®, Schlage®, ASSA® and Medeco®.

• 3-1/2" roses cover ANSI/BHMA hollow metal door cutout.
