For drawers, right-hand or left-hand doors
Cams included for lipped/overlay construction (straight cam; 1-1/2" extension) or flush construction (formed cam; 1-1/8" extension, 11/32" offset)
For overlay application, the combined thickness of front and frame cannot exceed the cylinder length listed below. To accommodate an overlay construction using a 3/4" front and a 3/4" frame, order the NLC8053 lock and the NLC7014-2C cam
Key removable in both locked and unlocked positions
Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams
Unassembled REMOVACORE versions of this lock are available
Stock Keying is specified on table below:
KA = All Keyed Alike to key number specified, master key will not work on these locks
KD = All Keyed Different, various lock numbers, master key will not work on these locks
KDMKD = All Keyed Different and master keyed, master key will work on these locks
Other key changes available from National Lock via SPECIAL ORDER
Packing: 25 each per box.
Sold In: Both broken and full box quantities. Discount available for full box orders.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

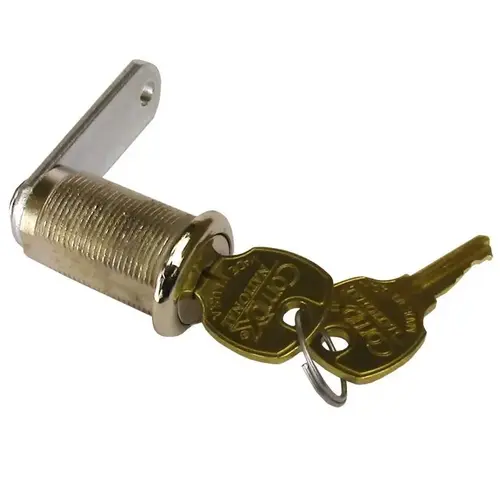

CompX National C8053-C390A-4G Disc Tumbler Cam Lock, Antique Brass with 1-3/16" Cylinder
Item #: C8053-C390A-4G by CompX National
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Antique Brass
Cylinder Length
1-3/16"
Application
Doors and Drawers
Keying
Keyed Alike #390
Maximum Material Thickness
7/8"
Product Type
Cam Lock
Mount Type
Flush or Lipped/Overlay
Tumbler Type
Disc
Key Number
390
Swivel Range
90 Degree
Color/Finish
Antique brass
Manufacturer Series
C8053
Product Overview
90 degree Cam Turn, Flush or Lipped/Overlay Construction
Each lock comes with one stop washer which allows the cam to turn 90 degreeFor drawers, right-hand or left-hand doors
Cams included for lipped/overlay construction (straight cam; 1-1/2" extension) or flush construction (formed cam; 1-1/8" extension, 11/32" offset)
For overlay application, the combined thickness of front and frame cannot exceed the cylinder length listed below. To accommodate an overlay construction using a 3/4" front and a 3/4" frame, order the NLC8053 lock and the NLC7014-2C cam
Key removable in both locked and unlocked positions
Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams
Unassembled REMOVACORE versions of this lock are available
Stock Keying is specified on table below:
KA = All Keyed Alike to key number specified, master key will not work on these locks
KD = All Keyed Different, various lock numbers, master key will not work on these locks
KDMKD = All Keyed Different and master keyed, master key will work on these locks
Other key changes available from National Lock via SPECIAL ORDER
Packing: 25 each per box.
Sold In: Both broken and full box quantities. Discount available for full box orders.
