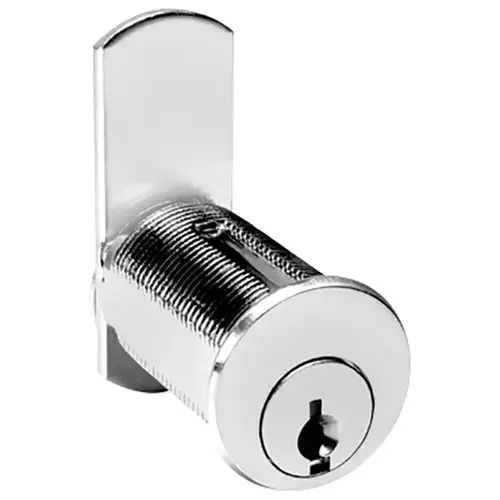

CompX National C8103-26D-KA915 Cam Lock
Item #: C8103-26D-KA915 by CompX National
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Finish
Satin Chrome
CAM Type
Straight
Mounting Type
Lipped/Overlay
Application
Drawer; For Overlay Application, the Combined Thickness of Front and Frame Cannot Exceed the Cylinder Length
Hand
Reversible
Handing
Reversible
Function
Cam Lock
Cylinder Type
4-Pin Tumbler
Finish Description
Satin Chrome
Included Components
(2) Keys; Trim Washer; Spur Washer for Wood; C2014 Cam Lock Mounting Plate for Wood; Mounting Nut; (2) Cams
Mounting Hole Diameter
3/4" (Wood), 0.76" (Metal)
Product Material
Brass
Maximum Material Thickness
7/8 Inch
Cam Length
1-1/4"
Cam Rotation
90° CW/CCW
Key Retaining
No
Features
Through the Use of a Shifter, the 360° Key Turn Turns the Cam 90° in Either Direction; Actual Application Determines Which Cam Position is the Locked Position; Each Lock is Furnished With An Alternate Cam for Opposite Cam Turn
Lock Type
Keyed
Product Type
Cabinet Hardware
Manufacturer Parent
CompX Security Products
Sub-Series
C8103-26D-KA915
Function Family
Cabinet/Drawer Hardware
Key Code
915
Color Code
626/US26D
Finish Family
Satin Chrome
