APPLICATION - For drawer, R.H. or L.H. doors. C8103 and C8109 are for lipped or overlay construction. For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail below. The other locks are for flush application. OPERATION - 90° cam turn, key removable in both locked and unlocked positions. KEYING - Will key together in most cases with all other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1. PACKAGING - Supplied with two keys, trim washer, spur washer for wood, mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

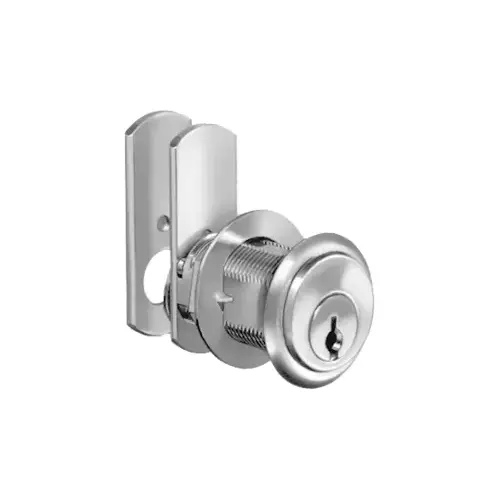

Compx Security C8103-KA107-26D Pin Cam Lock 1-3/16" Satin Chrome
Item #: C8103-KA107-26D by Compx Security
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Alternate Part Number-1
115891
Lock Style
Cam Lock
Finish code
US26D
Product Overview
CompX Pin Tumbler Cylinder Cam Locks
C8101, C8102, C8103, C8106, C8108, C8109
Through the use of a shifter, the 360° key turn turns the cam 90° in either direction. Actual application determines which cam position is the locked position. Each lock is furnished with an alternate cam for opposite cam turn.
* Note: The C8102, is a Multi-Functional Pin Tumbler Cam Lock with a 1-1/16" Cylinder Length. The lock is packaged with four (4) cams, two straight and two double formed. This allows the lock to be used for multiple applications for either drawer or right hand/left hand doors with lipped or overlay construction.
| Part No. | Type of Mounting | Cylinder Length | Max. Material Thickness | KA Codes | KD Changes | MKKD Changes | Case QTY | Reference Number | Key Blank |
| C8101-26D | Lipped/Overlay | 15/16" | 5/8" | 4 | 850 | 650 | 10 | M2-0106B | D4291 |
| C8101-4 | Lipped/Overlay | 15/16" | 5/8" | 2 | 850 | - | 10 | M2-0106B | D4291 |
| C8102-26D | Flush | 1-1/16" | 3/4" | 4 | 850 | 650 | 10 | M2-0106DF | D4291 |
| C8102-4 | Flush | 1-1/16" | 3/4" | 2 | 850 | - | 10 | M2-0106DF | D4291 |
| C8103-26D | Lipped/Overlay | 1-3/16" | 7/8" | 4 | 850 | 650 | 10 | M2-0106L | D4291 |
| C8103-3 | Lipped/Overlay | 1-3/16" | 7/8" | 2 | 850 | - | 10 | M2-0106L | D4291 |
| C8106-26D | Flush | 1-7/16" | 1-1/8" | 4 | 850 | 650 | 10 | M2-0106MF | D4291 |
| C8106-4 | Flush | 1-7/16" | 1-1/8" | 2 | 850 | - | 10 | M2-0106MF | D4291 |
| C8108-26D | Flush | 1-3/4" | 1-3/8" | 4 | 850 | 650 | 10 | M2-0106NF | D4291 |
| C8108-4 | Flush | 1-3/4" | 1-3/8" | 2 | 850 | - | 10 | M2-0106NF | D4291 |
| C8109-26D | Lipped/Overlay | 1-3/4" | 1-1/2" | 4 | 850 | 650 | 10 | M2-0106N | D4291 |
| C8109-4 | Lipped/Overlay | 1-3/4" | 1-1/2" | 2 | 850 | - | 10 | M2-0106N | D4291 |
Key Codes Used:
2 Codes - 107 and 915.
4 Codes - 101, 103, 107 and 915.
