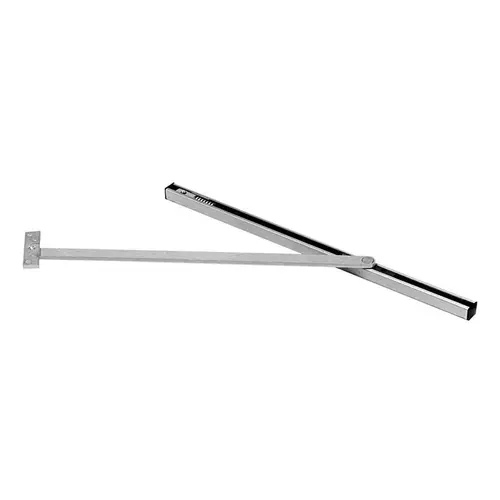

Rixson 2-336 630 Concealed Adjustable Standard Duty Stop Satin Stainless Steel Finish
Item #: 2-336 630 by Rixson
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Satin Stainless Steel
Color Code
630/US32D
Fire Rated
3 Hours {A}
Package Qty
1
Special Marks
Fire rated 3 Hours {A}
Base Material
Stainless Steel
Mounting Type
Concealed Mount
Grade
ANSI/BHMA Grade 1
For Use With
Interior Doors
Application
Interior Doors; Doors May be Single or Double Acting
Function
Stop Only
Door Size
30-1/16 Inch to 38-1/2 Inch
Door Opening
30-1/16" to 36" (Butt/Offset Pivots), 32-1/16" to 38-1/2" (Center Hung)
Finish Description
Satin Stainless Steel
ADA Compliant
No
Finish Family
Satin Stainless Steel
Included Components
5012-PKG (Adapter kit)
Product Size
3
Standards
ANSI/BHMA A156.8 Grade 1
For Door Thickness
1-3/4 Inch
Function Family
Overhead Door Stop
Jamb Bracket Width
3/16 Inch
Hold Open-Stop Range
110°
Jamb Bracket Height
3/4 Inch
Jamb Bracket Length
3 Inch
Features
Slide Track Design; Degree of Opening is Fully Adjustable and can be Adapted to Changing Needs; Durable Slider Cam and Shock Block
Product Type
Door Closer/Holder/Stop
Series
2 Series
Manufacturer Parent
Assa Abloy
Sub-Series
2-336
Door Thickness
1-3/4"
Hazardous Material
No
Finish code
630
No of inners
1
Product Overview
Concealed Adjustable Standard Duty Stop, Satin Stainless Steel
Checkmate Concealed Mount stop for interior doors. Adjustable, standard duty. For single or double acting doors. Non-handed slide track design.
