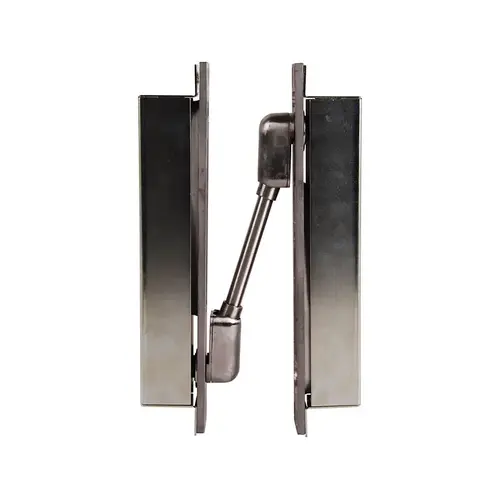

Securitron CEPT-C5E-10B Concealed Electrical Power Transfer CAT-5E Oil Rubbed Bronze Finish

Item #: CEPT-C5E-10B by SECURITRON

Brand: Securitron

See reviewsSee reviews
See reviews summary

$584.08

607.00 /each
SAVE UP TO 58.41
Buying in bulk
Special Order*Usually ships in 1-2 weeks

Finish: Dark Oxidized Satin Bronze Oil Rubbed

Fire Rated: 3 Hours {A}

3 Hours {A}
Yes
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Mortises Into The Edges of the Door and Frame
  • Direct Retrofit for Competitor Products
  • Tamper Resistant
  • All Metal Construction
  • MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked

UL Listing Type

UL 10C, ULC S318

Package Volume

0

Power Transfer

2-18GA and 8-22GA

Color

Dark Oxidized Satin Bronze Oil Rubbed

Product Width

1.1875"

Burglar Rated

No

Fire Rated

3 Hours {A}

Special Marks

Fire rated 3 Hours {A}

Restrictions

None

Product Height

1.4375"

Package Qty

1

ANSI Number

ANSI 10C, A250.13

Color Code

613/US10B

Origin

USA

BAA Qualified

Yes

Product Length

9.0265"

Base Material

Bronze

Dimension

9" x 1-1/5" x 1"

Hazardous Material

No

Finish

613E - Dark Oxidized Satin Bronze Powder

Model

Concealed with 9 Wires

Electronic

Yes

Substrate Type

Metal

Product Depth

1.03"

Product Height

9"

Product Width

1.2"

Endurance Cycles

10,000,000

Segment

Door Hardware

Product Overview

Power Transfer, 10 Wires, 2-18 AWG, 8-22 AWG Wires, Stranded, Molex, Oil Rubbed Bronze

The heavy-duty, tamper-resistant Concealed Electrical Power Transfer (CEPT) securely transfers power and data from the hinge side of the frame to electrified hardware on the door. The unit is discreetly concealed between the frame and door when the door is closed. Available in three multi-wire configurations and four finishes, the CEPT complements any architectural setting. Direct retrofit for competitor products. All metal construction including back boxes. 7/8" knockouts on back boxes accommodate EMF-type fittings. Tested to 1,000,000 cycles. Compatible with butt hinges up to 6" and continuous hinges with cutout.

Power transfers help to assist in the secure transfer of power and data.
