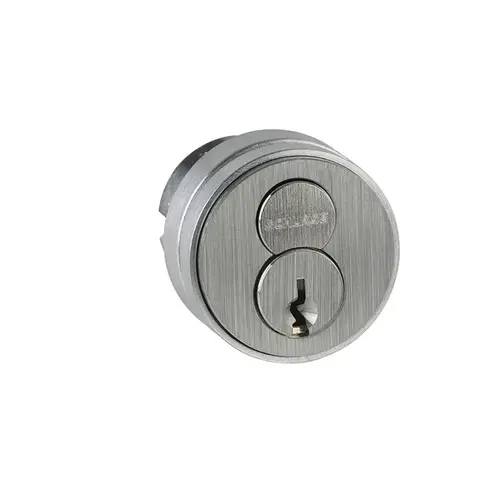

Schlage Commercial 20-061E 626 1-1/2" FSIC Mortise Cylinder E Keyway, Satin Chrome
Item #: 20-061E 626 by Schlage Commercial
Brand: Schlage Commercial
See reviewsSee reviews
In Stock
$190.75
242.00 /eachQUICK SHIPPING*Usually ships in 1 business dayIn stock: 53 units available
Finish: 626 - Satin Chrome
606 - Satin Brass
612 - Satin Bronze
613 - Oil Rubbed Bronze
622 - Matte Black
625 - Bright Chrome
626 - Satin Chrome
Bright Brass
Bright Polished Brass
Keyway: E Keyway, 1 Bitted
ICA Keyway, Construction, 0 Keys
ICC Keyway, Construction, 0 Keys
ICX Keyway, Construction, 0 Keys
C Keyway, 1 Bitted
E Keyway, 1 Bitted
F Keyway, 1 Bitted
G Keyway, 1 Bitted
CE Keyway, 1 Bitted
EF Keyway, 1 Bitted
FG Keyway, 1 Bitted
Schlage C123
C123 Keyway, 1 Bitted
S123 Keyway, 1 Bitted
C134 Keyway, 1 Bitted
C145 Keyway, 1 Bitted
S145 Keyway, 1 Bitted
Schlage C
Schlage E
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Certified Schlage Parts
- Made With Strong Materials
- Many Parts Are Finish Specific
Finish
626 - Satin Chrome
CAM Type
B520-253 IC core cam, Corbin Russwin ML2200 ((Old Corbin 7000-9000 and Russwin 4000-5000)
Color Code
626/US26D
Keyway
E Keyway, 1 Bitted
Cylinder Type
LFIC Mortise
Cam Number
K510-730
Package Qty
1
Special Marks
Full size/large format interchangeable core
Number of Pins
6
Type
Mortise Cylinder E Keyway
Finish Description
Satin Chrome
Keyblank Grouping
SCHL-E-6-1
Product Type
Cylinder/IC Core
Length
1-1/2 Inch.
Keying Charges
CCAM
Cylinder Length
1-1/2 Inch
Grade
ANSI/BHMA Grade 1
For Use With
Rim and Mortise Exit Devices
Function
Cylinder
Product Length
1-1/2 Inch
ADA Compliant
No
Finish Family
Satin Chrome
Included Components
Compression Ring; Spring; Blocking Ring
Standards
BHMA certified to ANSI A156.5 2001
Cylinder Cam Type
Straight
Features
Cores are Based on the Industry Standard Plug Diameter of 1/2", Quick and Convenient When Rekeying is Required, Shared Keyway Families Allows Integration Into An Existing Conventional Cylinder System
Series
Mortise Cylinder 1-1/2 Inch
Manufacturer Parent
Allegion
Sub-Series
20-061-E-626
Alternate Part Number-1
161596
Material
Steel
Manufacturer Warranty
Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Hazardous Material
No
Finish code
626
No of inners
1
No Of Pins
6 Pin Cylinder
Keying
None (Select for Less Cylinder Options)
Door Handing
Non-Handed
Substrate Type
Brass
Keys Included
2
Lock Type
Mortise
Cylinder and Keyways
Full Size Interchangeable Core, 6-Pin
Parts and Accessories Type
Replacement Parts
Product Overview
20-061Full size interchangeable cores
FSIC cylinders with straight cam for exit devices
Specifications: Core mechanism:- Standard pin and tumbler
- 3/8" blocking rings + compression ring and spring
- All cylinders are 1 1/2" long.
