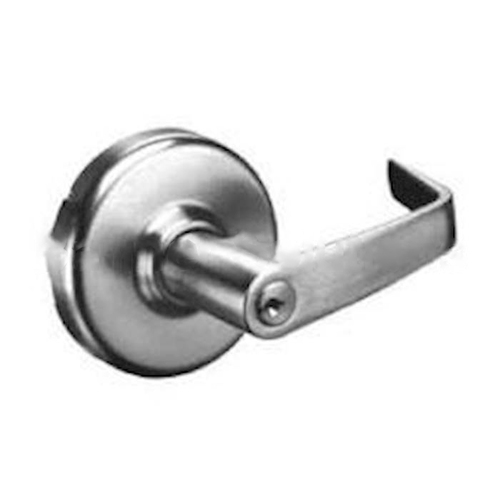

Corbin Russwin CL3555-NZD-612-LC-SC114 CL3555 Classroom Lockset

Item #: CL3555-NZD-612-LC-SC114 by Corbin Russwin

See reviews

$517.84 /each

SAVE UP TO 51.78

Buying in bulk

Roll over image to zoom in

Corbin Russwin CL3555-NZD-612-LC-SC114 CL3555 Classroom Lockset

Item #: CL3555-NZD-612-LC-SC114 by Corbin Russwin

See reviews See reviews

$517.84 /each

SAVE UP TO 51.78

Buying in bulk

Special Order*

Usually ships in 1-2 weeks

QTY
+
+ Add to Wishlist

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Product Type

Cylindrical Lock

Rose/Escutcheon Trim

Round Rose

Lever Style

NZD-Newport

Strike Number

SC114

Latch Number

600F04

Finish Description

Satin Bronze

Cylinder Type

Conventional Less Cylinder

Bore Size

2.1250

Strike

T-Strike, 1-1/8" x 2-3/4", 1-1/4" Lip, Sq Corner

Door Thickness

1-3/8" - 1-3/4"

Function

55-Classroom

Backset

2-3/4 Inch

Lever Length

4.5000

Grade

ANSI/BHMA Grade 1

Finish

Satin Bronze

Projection

2.8125

Classroom with Newport Lever, 612 Satin Bronze, 2-3/4" Strike, 2-3/4" Backset, Less Cylinder
CL3500 SeriesHeavy Duty Lockset

A heavy-duty Grade 1 lever lockset, ideal for commercial, institutional and multifamily applications.

Certification/Compliance: ANSI/BHMA:
  • Designed to meet A156.2 Series 4000, Grade 1
  • Meets A117.1 Accessibility Code
Federal:
  • Meets FF-H-106C
California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard)
  • All levers with returns comply; levers return to within 1/2" of door face
UL-cUL:
  • All locks listed for "A" label and lesser class single doors, 4' x 10'. Letter F and UL symbol on latch front indicate listing.
Specifications: Handing:
  • Non-handed
Door Thickness:
  • 1-3/4" (45mm) standard (fits doors 1-3/8" - 1-3/4" (35mm - 45mm))
Backset:
  • 2-3/4" (70mm) standard
Lock Chassis:
  • Steel, zinc dichromated for corrosion resistance
Front:
  • Brass, Bronze or Stainless Steel. 2-1/4" x 1-1/8" (29mm) standard for 2-3/4" (70mm), 3-3/4" (95mm) and 5" (127mm) backset. 2-1/4" x 1" (57mm x 25mm) standard for 2-3/8" (60mm) backset. Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm)
Latchbolt:
  • Brass, chrome plated with 1/2" (13mm) throw.
Auxiliary Latchbolt:
  • Deadlocking latchbolt prevents manipulation when door is closed
Strike:
  • Wrought brass or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center standard
Cylinder:
  • Brass, 6-pin, L4 keyway, 0-bitted standard
Keys:
  • Two nickel-silver standard
Warranty:
  • Seven-year limited
MicroShield®:
  • CL3500 series locks are available with MicroShield® antimicrobial coating. MicroShield is a revolutionary hardware finish coating, using a silver ion based technology, which inhibits the growth of bacteria, algae, yeast, fungus, mold and mildew. MicroShield is non-toxic and lasts for the lifetime of the finish to which it is applied. To order, suffix option code "C".
Keying Features Available:
  • 7-pin
  • Master keying
  • Construction master keying
  • Visual key control
  • Concealed key control
  • Interchangeable core (IC)
  • Security
  • Security IC
  • Access 3® Patented
  • Access 3® Security
  • Access 3® High Security
  • Access 3® Patented IC
  • Access 3® Security IC
  • Access 3® High Security IC
  • Pyramid Security
  • Pyramid Security IC
  • Pyramid High Security
  • Pyramid High Security IC
