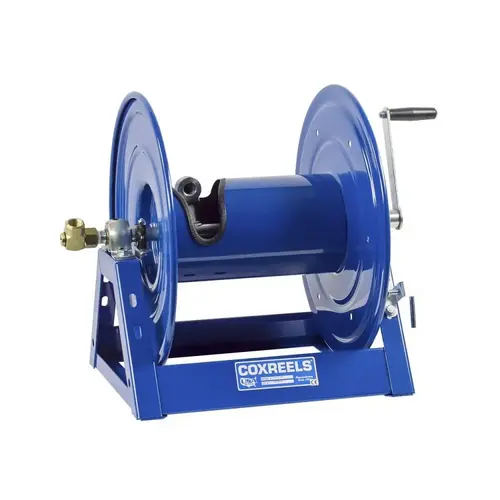

COXREELS 1125-4-200 Hose Reel without Hose: 1/2" ID Hose, 200 ft Long, Hand Crank
Item #: 1125-4-200 by COXREELS
UPC #: 674255822221
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Type
Air/Water Hose Reel
UNSPSC
27131500
Nom. Width
25 1/2 in
Nom. Height
18 3/4 in
Nom. Length
17 5/8 in
Operating Pressure [Nom]
3,000 psi
Hose O.D. [Nom]
7/8 in
Hose I.D. [Nom]
1/2 in
Finish
Powder Coated
Material
Steel
Style
Manual
For Use With
Agricultural
Application
Air
Color
Blue
Hose Included
No
Mounting Location
Flat
Fitting Size
1/2
Hose Length (ft)
200.00
Outlet Size
1/2
Reel Width
12
Reel Diameter
17
Mount Type
Flat
Height (inch)
18-1/8
Base Depth (Inch)
15-1/8
Base Width (Inch)
17-3/8
Duty Level
Heavy
Hose Inside Diameter (Inch)
1/2
Length (Decimal Inch - 4 Decimals)
17.6250
Length (Inch)
17-5/8
Maximum Temperature (F) ( - 0 Decimals)
225
Maximum Working Pressure (Psi - 3 Decimals)
3000
Minimum Temperature (Deg F - 3 Decimals)
-20
Overall Width (Inch)
27-3/4
Vendor Drop Ship
N
Product Overview
Sturdy robotically welded "A" frame base
Long handled lock pin secures reel from rotation
Low profile outlet riser and open hose slot drum design for smooth and even hose wraps
Permanently lubricated pillow block bearings for smooth rotation
Solid steel crank with smooth round handle
Standard less hose
Sturdy robotically welded "A" frame base
Long handled lock pin secures reel from rotation
Low profile outlet riser and open hose slot drum design for smooth and even hose wraps
Permanently lubricated pillow block bearings for smooth rotation
Solid steel crank with smooth round handle
Standard less hose
Sturdy robotically welded "A" frame base
