CRL Custom Aluminum Smoke Baffle Base Shoe with Polished Brass Cladding for 1/2" Glass

CRL Custom Aluminum Smoke Baffle Base Shoe with Polished Brass Cladding for 1/2" Glass

  • Custom Drilling, Mitering, and Cutting Services Available
  • For Fabricating Almost Invisible Smoke Curtains from 1/2" (12 mm) Glass
  • Glass is Mechanically Secured with Fasteners and Grommets
See Full Product Description

Similar Products


Description

  • Custom Drilling, Mitering, and Cutting Services Available
  • For Fabricating Almost Invisible Smoke Curtains from 1/2" (12 mm) Glass
  • Glass is Mechanically Secured with Fasteners and Grommets

  • Product Description
  • Technical Details 1
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Glass Attachment

Requires 3/4" (19 mm) Holes

Length

Custom

Ceiling Attachment

Requires 1/4" (6 mm) Flat Head Fasteners Every Foot

Color

Polished Brass

  • Custom Drilling, Mitering, and Cutting Services Available
  • For Fabricating Almost Invisible Smoke Curtains from 1/2" (12 mm) Glass
  • Glass is Mechanically Secured with Fasteners and Grommets

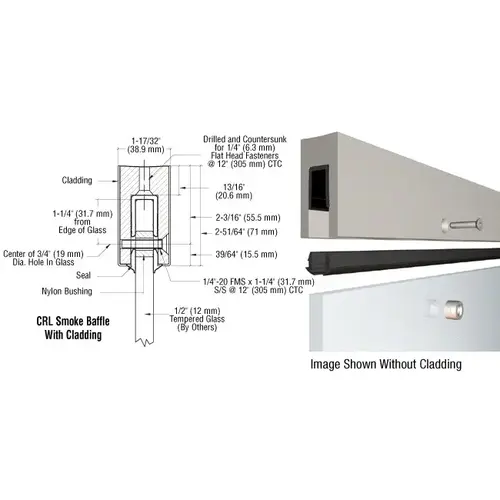

CRL Smoke Baffle Aluminum Base Shoe is designed to provide an almost invisible 1/2" (12 mm) tempered glass smoke curtain. Many of today’s fire codes require large offices or retail areas to be broken down into smaller, more manageable areas that can be monitored by smoke detectors. This is the specific application for smoke baffles or curtains. Smoke curtains work to retain smoke in a specific area of a specified square footage. Some sprinkler systems are activated by a smoke alarm, so sectioning off areas through the use of smoke curtains can prevent unnecessary sprinkler activation. Extruded aluminum Smoke Baffle Base Shoe simply attaches to the ceiling structure so the glass can hang straight down. The glass is secured with screws going through nylon grommets that fit into 3/4" (19 mm) holes drilled in the glass on 12" (305 mm) centers. A glass fabrication template is included. Cladding in five architectural finishes. Important Notes: Check your local building codes for regulations pertaining to ceiling area square footage and required depth specifications for glass curtains.
