CRL Low Profile Sidelite Rails measure only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide, a perfect match for our Low Profile Door Rails. The included Reversible Saddle allows you to maintain a perfect sight line even when using a 1/2" (13 mm) threshold under the door. Choose from eight architectural finishes or custom painted. For additional information, contact Commercial Hardware Technical Sales.
ORDERING INFORMATION:
SREC2S Series End Caps and Cat. No. UCSB4 Setting Blocks must be ordered separately..
Custom lengths and finishes available on special order.
Low Profile Sidelite Rails come with vinyl to glaze 1/2" (12 mm) glass. If using 3/8" (10 mm) glass, Cat. No. GGT38 Series Vinyl must be ordered separately.
Product Warning:
This material is Stainless Steel Cladded Aluminum and cannot be cut with a standard chop saw or abrasive blade. These will cause the Cladding to heat up and burn the finish. This material must be cut with a cold saw to prevent damage to the finish. For further information please contact Technical Sales.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL SR2SBS12CL Custom Length Brushed Stainless 2-5/16" Low Profile Sidelite Rail with Saddle
Item #: SR2SBS12CL by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

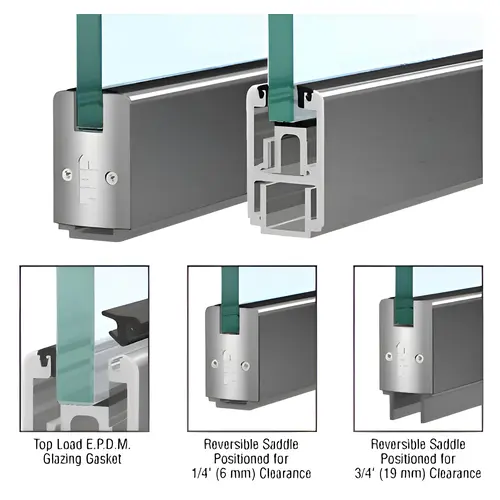

Features
- Eight Architectural Finishes Plus Custom Painted
- Extruded Saddle is Reversible to Match 1/4" (6 mm) or 3/4" (19 mm) Door Clearances
- Low Profile 2-5/16" (59 mm) Tall Rails Provide an Even Sight Line with Our DR2S Series Low Profile Door Rails
- Vinyl Provided for Use with 1/2" (12 mm) Tempered Glass
Length
Custom
Finish
Brushed Stainless Steel
Width
1-1/2
Glazing Thickness
3/8 or 1/2
Glazing Type
Tempered Glass
Finish/Color
Brushed Stainless Steel
Height
2-5/16
Product Overview
CRL Low Profile Sidelite Rails measure only 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide, a perfect match for our Low Profile Door Rails. The included Reversible Saddle allows you to maintain a perfect sight line even when using a 1/2" (13 mm) threshold under the door. Choose from eight architectural finishes or custom painted. For additional information, contact Commercial Hardware Technical Sales.
ORDERING INFORMATION:
SREC2S Series End Caps and Cat. No. UCSB4 Setting Blocks must be ordered separately..
Custom lengths and finishes available on special order.
Low Profile Sidelite Rails come with vinyl to glaze 1/2" (12 mm) glass. If using 3/8" (10 mm) glass, Cat. No. GGT38 Series Vinyl must be ordered separately.
Product Warning:
This material is Stainless Steel Cladded Aluminum and cannot be cut with a standard chop saw or abrasive blade. These will cause the Cladding to heat up and burn the finish. This material must be cut with a cold saw to prevent damage to the finish. For further information please contact Technical Sales.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
