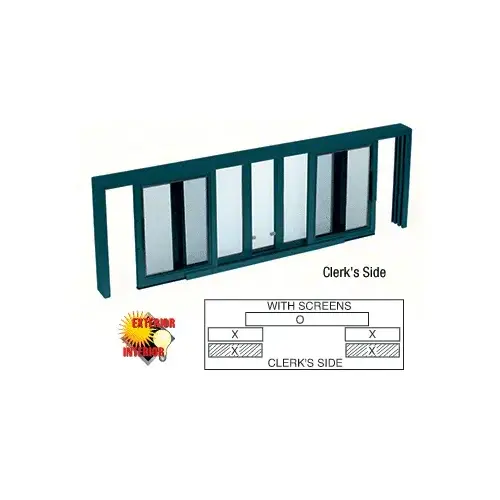

CRL SW5218P Custom Powder Painted Horizontal Sliding Service Window XOX Format with 1/8" Glass with Screen
Item #: SW5218P by CR Laurence
Roll over image to zoom in
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Available in Vertical and Horizontal Formats
- Each Unit is Customized to Fit Your Needs
- For Light Duty Applications of 50 or Fewer Uses Per Day
- Glass and Screen Panels on Either End Can be Opened as Required
O = Fixed, X = Sliding
1/8" (3 mm) Glass
Custom Powder Painted
Materials: Extruded Aluminum; Tempered Safety Glass (On Some Models); Fiberglass Screen (On Some Models)
Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Painted or Kynar Painted
Glazing: 1/8" (3 mm) or 1/4" (6 mm) Tempered Glass; 1/2" (12 mm) Insulating Glass (On Some Models); Vinyl Supplied on All Models
Instructions Included Important Notes: Horizontal Service Window Series SW1600 THRU SW5200 Have these Maximum Sizes: 144" (3.66 m) Wide x 36" (914 mm) High (With Restrictions) EXAMPLE: A 144" (3.66 m) wide window has a maximum height of only 24" (610 mm). Please be advised that Series SW1600 thru SW5200 windows are intended to be used as Pass-Through Windows. They are not constructed with storefront extrusions, and therefore are not intended for any other use. No keyed lock is available for series SW4200 through SW4800. They are supplied with a screw-in Pin Lock. Insulated glass windows, or 1/2" (12 mm) insulated Glass Windows, or 1/2" (12 mm) glass units with screens (Series SW2400, SW3200 and SW4200) are not available with a keyed lock.
