CRL SCBFW1C Custom Self-Closing Flush Mount Bi-Fold Service Window
Item #: SCBFW1C by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Hip-Activated Opening Feature
- Self-Closing
- Custom Size or Finish
- Drawings and Specifications are Available
Service Opening Size (W x H)
Custom Model - Must Specify
Window Type
Flush Mount Semi-Automatic
Overall Size
Specify Size
Service Opening Width
Specify Size
Overall Size (w x h)
Custom Model - Must Specify
Service Opening Height
Specify Size
Finish
Specify
Material
Aluminum
Window Style
Flush Mount Semi-Automatic
Size
Specify
Glazing Thickness
1/4
Glazing Type
Clear Tempered
Finish/Color
Specify
Glazed
Yes

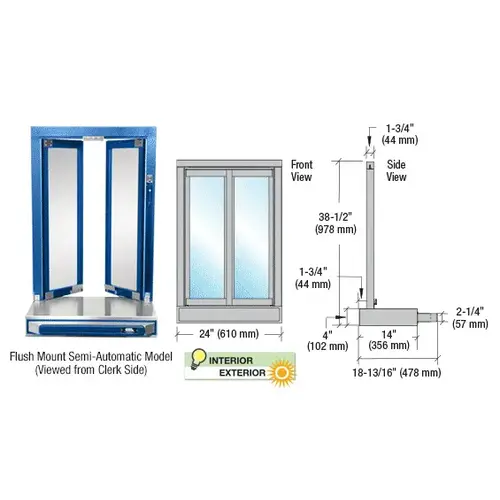

CRL Bi-Fold Service Windows are perfect anywhere a high quality bi-folding window is required. Features include two panels that simultaneously open outward towards the customer, and a burglar bar for extra security. Projected and Flush Mount models are available in two different configurations:
MANUAL - Both panels move simultaneously as either panel is manually operated.
SEMI-AUTOMATIC - Opening the window is achieved by pushing on the hip activated slide bar. Step away from the window and the two panels automatically close. Custom sizes and custom paint colors are available by special order. For additional information, contact DK Hardware Sales Department.
SPECIFICATIONS:
Materials: Aluminum Extrusions; Pile Weatherstrip; Glazing Vinyl; Stainless Steel Shelf
Glazing: 1/4" (6 mm) Clear Tempered Glass
Stock Finishes: Satin Anodized or Bronze Anodized
Bi-Fold Configuration: Self-Closing
To Determine Rough Opening: Add 1/2" (12 mm) to Width, 1/4" (6 mm) to Height
.
