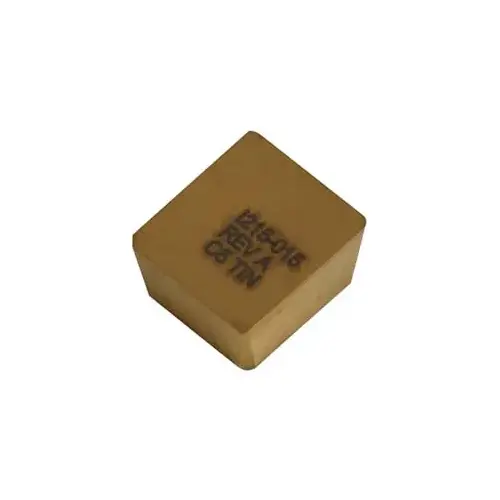

Cutting Tool Technologies 1215-015 TIN Milling Insert: C5, Solid Carbide TiN
Item #: 1215-015 TIN by Cutting Tool Technologies
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Iso Code
1215-015
Thickness Range (Decimal Inch)
0.1250 to 0.1500
Cutter Series Compatibility
DASC
Single or Double Sided Insert
Single
Inscribed Circle Range (Decimal Inch)
0.0000 to 0.2500
Manufacturer Grade
C5
Included Angle Degree
90
Insert Size Code
1215
Insert Style
1215
Secondary Workpiece Material Code
M
Chip Breaker
Flat Top
Rake Angle
0
Insert Shape
Square
Corner Radius (Inch)
1/64
Inscribed Circle (Decimal Inch)
0.2150
Insert Hand
Neutral
Secondary Workpiece Material
Stainless Steel
Rake
Positive
Multi-use Tool
Yes
Maximum Depth of Cut (Decimal Inch)
0.2000
Insert Holding Method
Wedge
Coating Classification
PVD
Width (Decimal Inch - 4 Decimals)
0.2150
Vendor Drop Ship
N
Thickness (Inch)
1/8
Thickness (Decimal Inch - 4 Decimals)
0.1250
Primary Workpiece Material Code
P
Primary Workpiece Material
Steel
Material Grade
C5
Manufacturers Catalog Number
1215-015
Length (Decimal Inch - 4 Decimals)
0.2150
Corner Radius (Decimal Inch)
0.0150
Coating/Finish
TiN
Coating Process
PVD
Series
1215
Insert Material
Solid Carbide
Standards
ANSI
Number of Cutting Edges
4
ANSI Code
1215-015
Material Application
Steel
Cutting Edge Style
Radius
Product Overview
Milling Insert: C5, Solid Carbide Coated, 1/8" Thick
