Milling Insert: C5, Solid Carbide TiN

Roll over image to zoom in

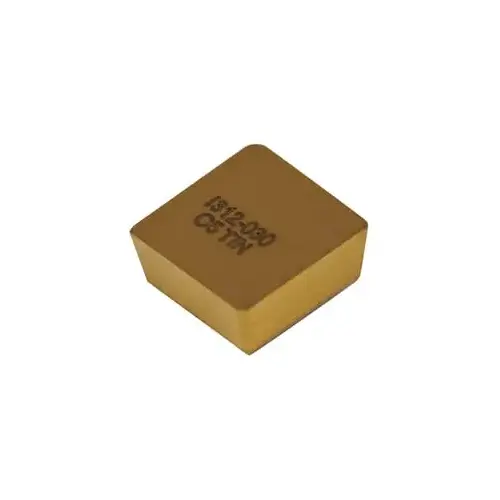

Cutting Tool Technologies 1312-030 TIN Milling Insert: C5, Solid Carbide TiN

Item #: 1312-030 TIN by Cutting Tool Technologies

See reviewsSee reviews
See reviews summary
In Stock

$37.56

/each
SAVE UP TO 3.76

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 111 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features

Cutting Edge Style

Single Sided

Material Application

Steel

ANSI Code

1312-030

Number of Cutting Edges

4

Standards

ANSI

Insert Material

Solid Carbide

Series

1312

Coating Process

PVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0300

Length (Decimal Inch - 4 Decimals)

0.3120

Length (Inch)

5/16

Manufacturers Catalog Number

1312-030

Material Grade

C5

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1250

Thickness (Inch)

1/8

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3120

Width (Inch)

5/16

Coating Classification

PVD

Insert Holding Method

Wedge

Maximum Depth of Cut (Decimal Inch)

0.2852

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.3120

Insert Shape

Square

Rake Angle

0

Chip Breaker

Flat Top

Secondary Workpiece Material Code

M

Insert Style

1312

Insert Size Code

1312

Included Angle Degree

90

Inscribed Circle (Inch)

5/16

Manufacturer Grade

C5

Inscribed Circle Range (Decimal Inch)

0.3000 to 0.3500

Single or Double Sided Insert

Single

Cutter Series Compatibility

DASC

Thickness Range (Decimal Inch)

0.1250 to 0.1500

Iso Code

1312-030

Product Overview
Milling Insert: C5, Solid Carbide Coated, 1/8" Thick
