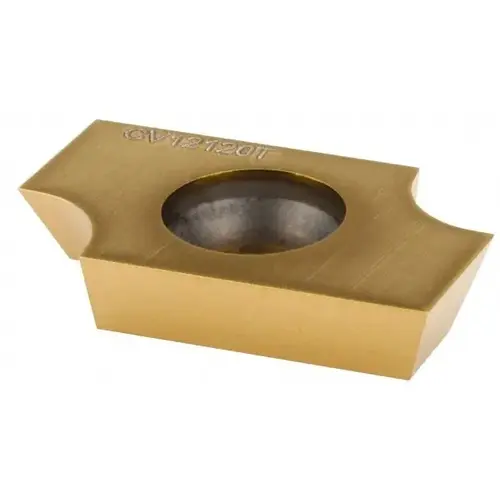

Cutting Tool Technologies CV12120T-XCP10 Milling Insert: C5, Solid Carbide - pack of 10
Item #: CV12120T-XCP10 by Cutting Tool Technologies
See reviewsSee reviews
In Stock
$304.32
/packageSAVE UP TO 30.43
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 8 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Ground
Material Application
Steel
ANSI Code
CV12120T
Number of Cutting Edges
2
Standards
ANSI
Insert Material
Solid Carbide
Series
CV
Coating Process
PVD
Coating/Finish
TiN
Corner Radius (Decimal Inch)
0.1200
Length (Decimal Inch - 4 Decimals)
0.6250
Length (Inch)
5/8
Manufacturers Catalog Number
CV12120T
Material Grade
C5
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.1250
Thickness (Inch)
1/8
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.3750
Width (Inch)
3/8
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.1200
Multi-use Tool
No
Rake
Positive
Secondary Workpiece Material
Stainless Steel
Insert Hand
Right Hand
Inscribed Circle (Decimal Inch)
0.3750
Insert Shape
Rectangle
Rake Angle
0
Chip Breaker
Flat Top
Secondary Workpiece Material Code
M
Insert Style
CV
Insert Size Code
12120
Included Angle Degree
90
Inscribed Circle (Inch)
3/8
Manufacturer Grade
C5
Single or Double Sided Insert
Single
Cutter Series Compatibility
CAV
Length Range (Decimal Inch)
0.6000 to 0.6500
Thickness Range (Decimal Inch)
0.1250 to 0.1500
Concave Radius (Decimal Inch)
0.1200
Iso Code
CV12120T
Product Overview
Milling Insert: C5, Solid Carbide Coated, 1/8" Thick, 3/8" Wide
