Hager 45CEARC26D 4500 Series Exit Device Part, Satin Chrome

4500 SeriesGrade 1 Rim Device

Hager 4500 Series Exit Devices are ideal for use in heavy duty commercial applications including office buildings, medical facilities, schools, and hospitality structures. The Hager 4500 Series is designed and engineered to provide a lifetime of superior performance on doors in heavy duty commercial applications. Properly applied and maintained Hager 4500 Series Exit Devices and Trim are backed by a lifetime warranty, providing peace of mind from distributor to building owner. Go to www.hagerco.com for specific warranty conditions. Hager 4500 Series Exit Devices are BHMA certified Grade 1 and meet Life Safety codes and Fire Safety requirements. The 4500 Series Rim and Surface Vertical Rod devices meet ANSI requirements to be listed as Severe Windstorm Components and are approved for High Velocity Hurricane Zone areas. Extruded aluminum construction, stainless steel push bar cover, die cast caps and covers, and dead locking stainless steel Pullman type latchbolts provide premium security and performance at value pricing.

Warranty:

• Lifetime warranty

Features: Certification:

• BHMA Certified ANSI/BHMA A156.3-2014 Grade 1
• UL305 Listed for Panic Hardware
• UL10C Positive Pressure Rated
• UL10B Neutral Pressure Rated
• Complies with ANSI A117.1 for Accessible Buildings and Facilities
• ANSI A 250.13 Severe Windstorm Resistant Component
• Miami Dade NOA #17-1219.14

Covers:

• Stainless steel, zinc

Cover Tube:

• Aluminum

Dogging:

• Hex key dogging standard on panic-rated devices
• Less dogging available on panic-rated devices, specify LD
• Cylinder dogging available on panic-rated devices,
  specify CD
• (3902 1-1/8" (29 mm) mortise cylinder sold separately)

End Caps:

• Zinc
• Flush end cap option available

Fasteners:

• Wood and machine screws
• Thru-bolts supplied standard

Latchbolt:

• 3/4" (19 mm) throw, pullman type with automatic dead-latching, stainless steel

Strikes:

• Stainless steel with stainless steel pin and roller - included standard with panic device
• Solid stainless steel - included standard with fire-rated device
• Surface applied to frame with slotted holes for easy adjustment
• Double door strike for use with surface vertical rod and rim device available

Specifications: Door Thickness:

• 1-3/4" (44 mm) - Standard up to 3", except with night latch (NL) which is 2-1/2"

Door Width:

• 36" (914 mm) field sizeable to 30" (762 mm) panic-rated door and 28" (711 mm) fire-rated door
• 48" (1219 mm) field sizeable to 36" (914 mm) panic- or fire-rated door

Projection:

• 3" (76 mm) in undogged position
• 2-5/8" (67 mm) in dogged position

Stile Width:

• 5-3/8" (137 mm) - minimum stile width required for single door and 5/8" (16 mm) stop
• 4-7/8" (124 mm) - minimum stile width required for double door x surface vertical rod with double door strike
• 5-3/4" (146 mm) - minimum stile width required for double doors with 2" (51 mm) mullion
• All stile widths are measured from door edge.

Notes:

• Recommended for use on appropriately reinforced doors

Trim:

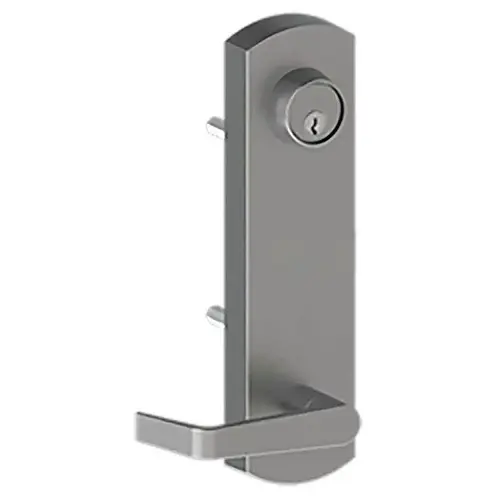

• 4500 Series excutcheon trim for rim device is surface mounted with a variety of lever options
• Pull plate trim
• Vandal resistant
• Rim cylinder x optional pull

Finishes:

• US3, US4, US10, US10B, US26, US26D, US32D, BLK
• Trim not available in US32D
• Anti-Microbial available with US26D, US32D
