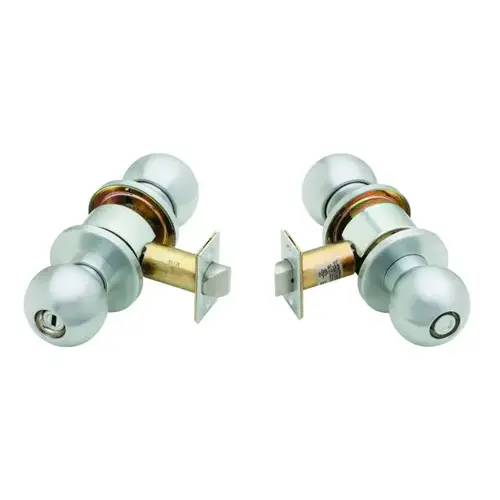

Schlage Commercial D40S ORB 626 D40S Orbit Bath/Bedroom Privacy Lock, Satin Chrome
Item #: D40S ORB 626 by Schlage Commercial
Brand: Schlage Commercial
UPC #: 043156914036
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Privacy - Push Button Locking with Emergency Unlock from Outside
- Exceeds 800,000-cycle ANSI Grade 1 requirements
- Exceeds ANSI A156.2, Series 4000 Grade 1 lock knob torque requirements
- ANSI/BHMA Certified A156.2-2011
- Heavy-gauge, cold-rolled steel mechanisms are corrosion treated for normal atmosphere conditions
- 1-3/8" to 2" Door Range
- Commercial Grade 1
- UL Listed for 3 Hour Fire Door
Function
40-Privacy
Finish
Satin Chrome
Backset
2-3/4", 1-1/8" x 2-1/4", Square Corner
Strike
ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner
Design
Orbit
Series
D Series
ANSI Function
F76 - Privacy
Bolt Protection
1/2 In.
Dust Box
None
Latch Backset Dim
2-3/4 In.
Latch Number
13-248
Latch Type
Spring Latch (Unguarded)
Lever/Knob Design
ORB - Orbit
Lock Face Size
2-1/4 In. x 1-1/8 In.
Package Qty
1
Rose/Escutcheon Design
TUL - Tulip
Strike Height
4-7/8 In.
Strike Number
10-025
Strike Type
ASA
Strike Width
1-1/4 In.
Thickness
1-3/4 In.
Color Code
626/US26D
Grade
ANSI/BHMA Grade 1
Finish Description
Satin Chrome
Knob style
ORB-Orbit
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Projection
2.6250
Door Thickness
1 3/8" - 2"
Knob Diameter
2.1250
ADA Approved
False
Application
Military Barracks; Back of House Hospitality; Retrofit Applications; Heavy Traffic Applications
Warranty
3 Year Limited
Handle Type
Knob
Rose Diameter
2-1/2 Inch
Latch Throw
1/2 Inch
ADA Compliant
No
Finish Family
Satin Chrome
Strike Size
1-1/4" x 4-7/8"
Standards
ANSI A156.2 Series 4000, Grade 1; Federal FF-H-106C Series 161
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
Front Size
1-1/8" x 2-1/4"
Function Family
Privacy/Bedroom/Bathroom
Strike Lip
1-3/16 Inch
Product Projection
2-5/8 Inch
Features
Exceeds 800,000 Cycle ANSI Grade 1 Requirements; Heavy Gauge, Cold Rolled Steel Mechanisms are Corrosion Treated for Normal Atmosphere Conditions
Manufacturer Parent
Allegion
Latch Corner
Square
Knob/Lever Size
2-1/8 Inch
Latch Bolt Material
Brass
Knob Style Family
Ball Knob
Sub-Series
CL_Cylindrical_Locks_schlage_commercial_45
Cylinder Type
Non-Keyed
Product Overview
Bath/Bedroom Privacy Lock, Push-button locking, 2-3/4" Backset Square Corner, 4-7/8" ANSI Strike. 626 Satin Chrome.
D SeriesCylindrical Lock
D SeriesCylindrical Lock
Schlage D Series cylindrical locks are knob-only locks built to survive in the toughest environments. The ANSI/BHMA Grade 1 rating allows the D Series to fit in applications like military barracks, back-of-house hospitality and repair/replace instances. Three knob styles and ten finishes make the Schlage D Series the perfect retrofit option.
Heavy-duty hardware for premium performance.
- Exceeds 800,000-cycle ANSI Grade 1 requirements
- Exceeds ANSI A156.2, Series 4000 Grade 1 lock knob torque requirements
- Heavy-gauge, cold-rolled steel mechanisms are corrosion treated for normal atmosphere conditions
- Keyed functions of knob designs are field reversible
- 1 3/8" to 2" (35 mm-51 mm) standard
- 2 3/4" (70 mm) standard. 2 3/8"
- Brass, bronze or stainless steel. 1 1/8" x 2 1/4" (29 mm x 57 mm) square corner, beveled
- Steel, zinc dichromate plated for corrosion resistance
- Brass, 1/2" (12 mm) throw, deadlocking on keyed and exterior functions. 3/4" (19 mm) throw, anti-friction latch available for pairs of fire doors.
- Wrought brass, bronze or stainless steel
- ANSI curved lip strike 1 1/4" x 4 7/8" x 1 3/16" lip to center standard. Optional strikes, lip lengths and ANSI strike box available
- 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock
- Full size interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying
- Three-year limited warranty
- 605 - Bright brass
- 606 - Satin brass
- 609 - Antique brass
- 612 - Satin bronze
- 613 - Oil rubbed bronze
- 625 - Bright chromium plated
- 626 - Satin chromium plated
- 629 - Bright stainless steel
- 630 - Satin stainless steel*
- 643e - Aged bronze
- e = an equivalent finish to the BHMA standard.
- *Not available on Orbit or Tulip knob designs.
- Meets or exceeds A156.2 Series 4000, Grade 1 strength and operational requirements.
- Meets FF-H-106C Series 161.
- All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing. Electrified functions are UL19X Listed for single point locking applications. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
- Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
