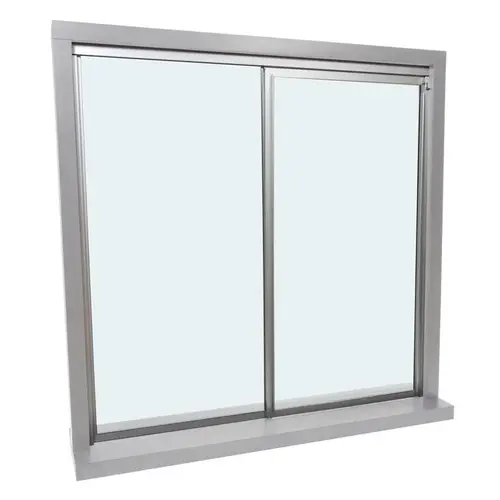

CRL D1038A0X3648 Florence Satin Anodized Factory Glazed Ox Model, 1/4" Tempered Glass, 36" Width, 48" Height, Satin Anodized Finish
Item #: D1038A0X3648 by CR Laurence
Brand: CRL
11 reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed with a satin anodized frame and 1/4" clear tempered glass for interior service window applications.
- Measures 36" in width and 48" in height, designed to fit an opening of 36-1/8" by 48-1/8".
- Features an OX configuration consisting of two panels, with one fixed panel and one sliding panel.
- Designed for interior use in hospitality and display shelving systems as a sliding service window.
- Panels are supplied fully glazed, with final assembly of the frame required during the installation process.
- The X sliding panel designation provides a clear clerk-side view for efficient service operations.
- Includes all necessary glass lites and frame components for a complete pass-thru assembly setup.
Configuration
OX
Finish
Satin Anodized
Model
Florence
Glazing Type
1/4" Clear Tempered Glass
Finish/Color
Satin Anodized
Panel Designation
O = Fixed, X = Sliding
Panel Quantity
2
Height
48 in. (1219.2 mm)
Width
36 in. (914.4 mm)
Product Overview
The Florence Satin Anodized Factory Glazed OX Model with 1/4" Tempered Glass Pass-Thru Assembly is a service window system designed for interior use. This assembly features a two-panel configuration with one fixed panel and one sliding panel, designated as OX, where X represents the sliding panel from the clerk side view. The unit is constructed with 1/4" clear tempered glass and a satin anodized frame. The net frame size is 36" wide by 48" high, intended for an opening of approximately 36-1/8" wide by 48-1/8" high. The panels are provided fully glazed, though some assembly of the overall frame is required during installation. This pass-thru assembly is suitable for hospitality and display environments requiring a sliding service window. Please note that shipping weights are approximate and have not been verified. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
