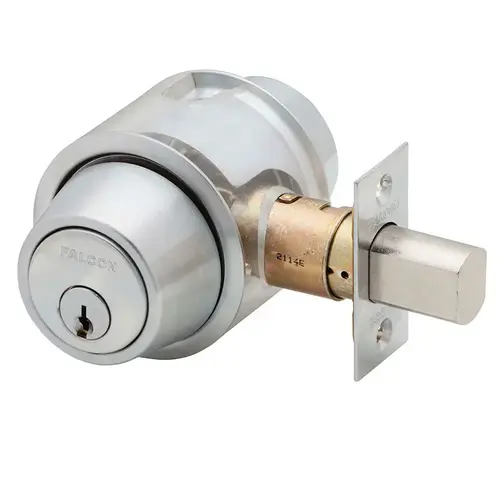

Falcon D141CP6 626 Lock Deadlock Satin Chrome
Item #: D141CP6 626 by Falcon
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Door Thickness: 1 3/8” to 1 3/4”. Up to 2 1/4” door thickness also available.
- Backsets: 2 3/8” to 2 3/4” adjustable deadbolt.
- Attachment: Locks are solidly attached to the door by 1/4” heat-treated steel bolts. These bolts pass through a steel plate (D111, D121 and D141) or the inner cylinder housing (D131) and thread directly into the back of the outer cylinder housing.
- A permanent cap is inserted over the inside cylinder (D131) making the bolts nearly impossible to remove.
- Handing: Non-handed. May be used on right hand or left hand doors swinging in or out.
- Cylinders: Furnished with solid brass plug and housing, drilled with 6-pin chambers, pinned in 5 unless otherwise specified. Also available with 7-pin cylinders. Available with 6 or 7-pin interchangeable cores. Furnished with two (2) nickel silver keys standard.
- Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
- Exposed Trim: Wrought brass or bronze reinforced with steel insert.
- Strikes: 2 3/4” x 1 1/8” lipless strike standard. ANSI 4 7/8” x 1 1/4” lipless, 2 1/4” full lip strikes, a 2 3/4” x 1 1/8” T-strike or a security strike are available. Consult Options and Accessories section.
- Screws: Furnished with wood/machine screws for use on wood or metal doors or frames.
- ANSI/BHMA Standard: A156.5, 2001, Grade 1. UL Listed, A label, 3 hour.
Package Volume
0
Color
Satin Chrome
Function
D141P-Single Cylinder x Turn
Grade
Grade 1
Package Qty
1
Color Code
626/US26D
Base Material
Brass or Bronze
Product Overview
Single Cylinder Deadbolt, Schlage C Keyway, Satin Chrome
Deadbolt locks provide an extra measure of protection against break-in when used as a supplement to an existing lockset. In applications ranging from military and government projects to multi-family housing, retail and restaurants, Falcon deadbolts deliver superior performance and the flexibility of multiple keying systems. Our full line of Grade 1 and 2 auxiliary locks feature interchangeable cores that are compatible with SFIC products from other manufacturers. Plus they're backed by Allegion, the best name in the business.
Can be fitted with any cylinder, enhancing lock strength on the jamb side of the door.
Deadbolts: Deadbolt locks are furnished with deadbolts which have a full 1" projection. Housed within the deadbolt is a freeturning, 1/4" thick, hardened steel, saw-resistant roller. Furnished standard with 2 3/8" to 2 3/4" adjustable backset and 1 1/8" x 2 1/4" faceplate. Optional 1" x 2 1/4" faceplate. Consult Options and Accessories section for other optional faceplates. D100 bolt is high strength steel.
