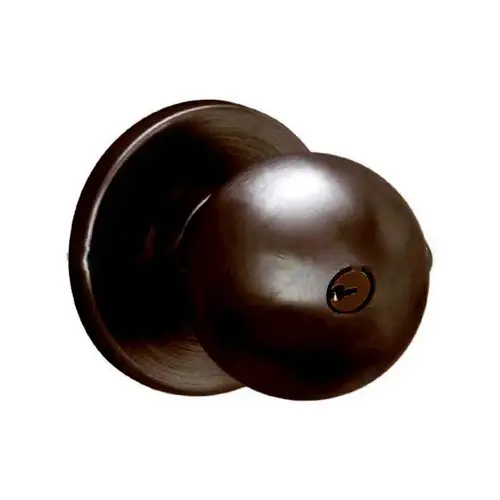

Schlage Commercial D70PD ORB 613Click To Copy D70PD Orbit Classroom Lock, Oil Rubbed Dark Bronze

Classroom Lock, Keyed Lock function, 6-Pin Cylinder,"C" Keyway, 2-3/4" Backset Square Corner, 4-7/8" ANSI Strike. 613 Oil Rubbed Bronze.
D SeriesCylindrical Lock

Schlage D Series cylindrical locks are knob-only locks built to survive in the toughest environments. The ANSI/BHMA Grade 1 rating allows the D Series to fit in applications like military barracks, back-of-house hospitality and repair/replace instances. Three knob styles and ten finishes make the Schlage D Series the perfect retrofit option.

Heavy-duty hardware for premium performance.

• Exceeds 800,000-cycle ANSI Grade 1 requirements

• Exceeds ANSI A156.2, Series 4000 Grade 1 lock knob torque requirements

• Heavy-gauge, cold-rolled steel mechanisms are corrosion treated for normal atmosphere conditions

Specifications: Handing:

• Keyed functions of knob designs are field reversible

Door thickness:

• 1 3/8" to 2" (35 mm-51 mm) standard

Backset:

• 2 3/4" (70 mm) standard. 2 3/8"

Faceplate:

• Brass, bronze or stainless steel. 1 1/8" x 2 1/4" (29 mm x 57 mm) square corner, beveled

Lock chassis:

• Steel, zinc dichromate plated for corrosion resistance

Latch bolt:

• Brass, 1/2" (12 mm) throw, deadlocking on keyed and exterior functions. 3/4" (19 mm) throw, anti-friction latch available for pairs of fire doors.

Exposed trim:

• Wrought brass, bronze or stainless steel

Strike:

• ANSI curved lip strike 1 1/4" x 4 7/8" x 1 3/16" lip to center standard. Optional strikes, lip lengths and ANSI strike box available

Cylinder and keys:

• 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock

Keying options:

• Full size interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying

Warrant:

• Three-year limited warranty

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 609 - Antique brass
• 612 - Satin bronze
• 613 - Oil rubbed bronze
• 625 - Bright chromium plated
• 626 - Satin chromium plated
• 629 - Bright stainless steel
• 630 - Satin stainless steel*
• 643e - Aged bronze
• e = an equivalent finish to the BHMA standard.
• *Not available on Orbit or Tulip knob designs.

Certifications: ANSI:

• Meets or exceeds A156.2 Series 4000, Grade 1 strength and operational requirements.

Federal:

• Meets FF-H-106C Series 161.

UL / cUL:

• All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing. Electrified functions are UL19X Listed for single point locking applications. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.

ADA compliant:

• Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
